close| Price | 10,000৳ |
| Regular Price | 11,000৳ |
| Status | In Stock |
| Product Code | 48288 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | LGA1200 package: 11th/10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors L3 cache varies with CPU |
|
| Chipset | Intel H470 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
|
| Maximum Memory | Supporting up to 64 GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices * Supported with an additional PCIe to M.2 NVMe SSD adapter card RAID 0, RAID 1, and RAID5 support for SATA storage devices |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |

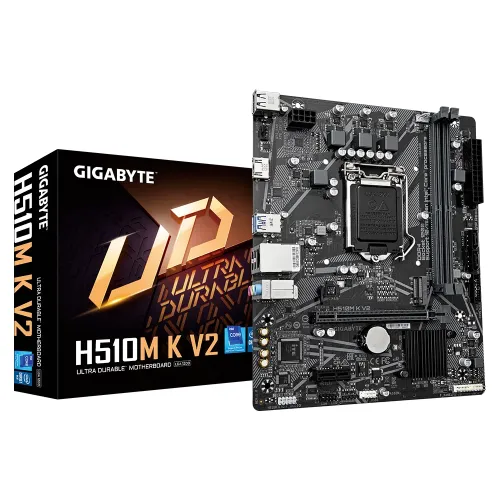

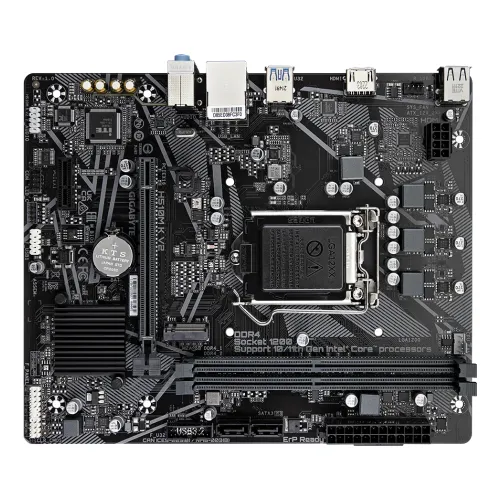

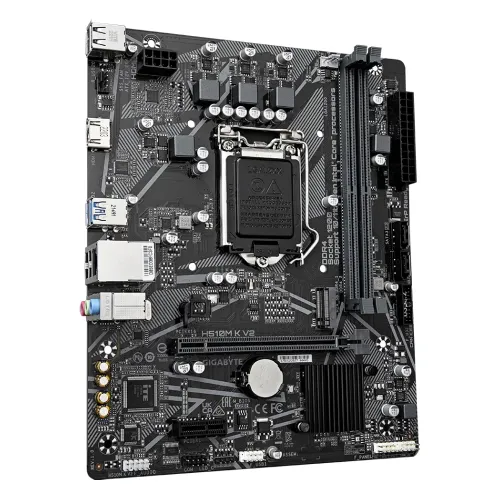

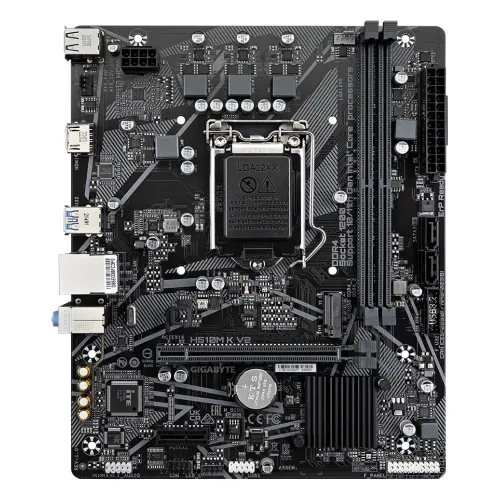

The GIGABYTE H510M K V2 Motherboard is a dependable and affordable choice for building a mainstream PC, offering support for both 11th Gen and 10th Gen Intel Core processors. As part of the trusted GIGABYTE Motherboard lineup, it incorporates Ultra Durable technology with high-quality components, advanced thermal design, and anti-sulfur resistors to ensure long-lasting stability. This compact GIGABYTE 510 Motherboard comes in a micro-ATX form factor, making it suitable for smaller cases while still delivering essential features. It supports dual-channel DDR4 memory with two DIMM slots for up to 64GB RAM, and provides fast storage options through NVMe PCIe Gen3 x4 M.2 slots alongside SATA 6Gb/s connectors. Connectivity is enhanced with GbE LAN featuring bandwidth management, multiple USB 3.2 Gen 1 ports, and HDMI output for modern display setups. Cooling is managed by Smart Fan 5 technology, which uses multiple sensors and hybrid fan headers for efficient airflow control, while audio performance is boosted with 8-channel HD sound and high-quality capacitors. Compact, durable, and feature-rich, the GIGABYTE H510M K V2 Motherboard is an excellent balance of performance, reliability, and affordability, making it a versatile GIGABYTE 11th/10th Gen Motherboard for everyday computing and entry-level gaming builds.
In Bangladesh, you can get the original GIGABYTE H510M K V2 11th/10th Gen mATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE H510M K V2 11th/10th Gen mATX Motherboard comes with 3 years warranty.
The latest price of GIGABYTE H510M K V2 Motherboard in Bangladesh is 10,000৳. You can buy the GIGABYTE H510M K V2 Motherboard at best price from our website or visit any of our showrooms.
