| Price | To be announced |
| Status | Up Coming |
| Product Code | 44877 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | 14th and 13th Generation Intel Core i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| USB (s) | Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 1 x front panel audio header 3 x audio jacks |
|

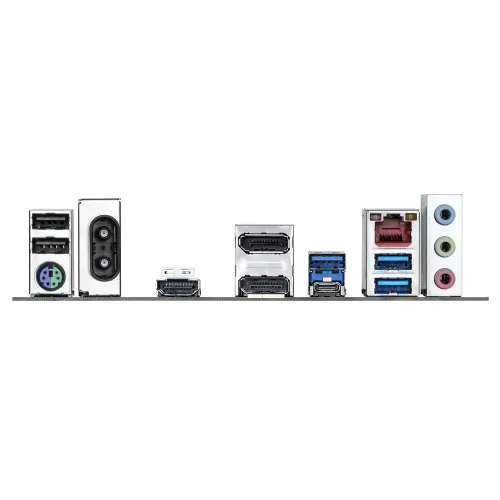

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton® Internet Security (OEM version) | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

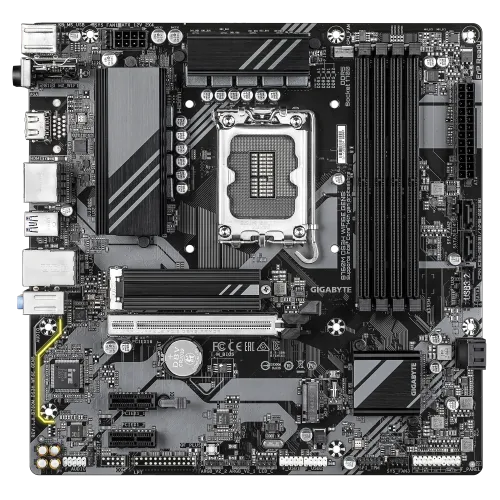

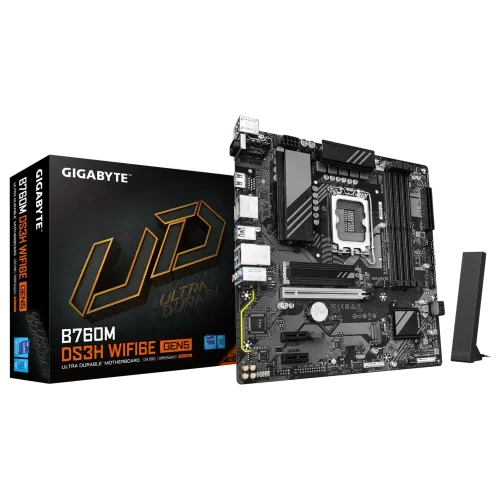

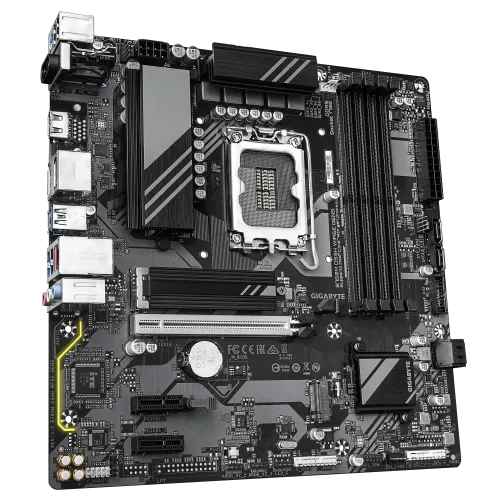

The GIGABYTE B760M DS3H WIFI6E GEN5 mATX Motherboard is a powerful and compact option for gamers, creators, and professionals seeking modern capabilities without sacrificing stability or performance. Built with the Intel B760 Express chipset, it supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron CPUs via the LGA1700 socket, making it ideal for a variety of designs. Memory support is future-ready, with four DDR5 DIMM ports supporting up to 256GB capacity and overclocking rates of up to DDR5-7600 when combined with high-end processors. The GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard also supports dual-channel architecture, ECC and non-ECC modules, and Intel XMP profiles for smooth overclocking. Graphics are handled by integrated Intel HD Graphics, which supports HDMI 2.1 with resolutions of up to 4K at 60Hz and multiple DisplayPort outputs, allowing for triple-display setups for productivity and enjoyment. The Realtek codec improves audio quality by enabling up to 7.1-channel HD sound with S/PDIF output, providing an immersive experience. With Realtek 2.5GbE LAN and Intel Wi-Fi 6E AX210 module, the GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard provides Wi-Fi 6E connection across 2.4GHz, 5GHz, and 6GHz bands, as well as Bluetooth 5.3 for current wireless devices. Storage options include two M.2 PCIe 4.0 x4 connectors for NVMe SSDs and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support, allowing for high-speed and redundant storage configurations. Expansion is robust, with one PCIe 5.0 x16 port for next-generation GPUs and two PCIe 3.0 x1 slots for add-on cards. The GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard's rear panel features USB 3.2 Gen2 Type-C, USB 3.2 Gen1, USB 2.0, HDMI, DisplayPort, RJ-45 LAN and audio ports, as well as Wi-Fi antenna connectors. Other features include RGB and ARGB headers, Q-Flash Plus for simple BIOS updates, fan monitoring, Smart Backup, and support for GIGABYTE Control Center software. With Windows 10 and 11 compatibility and a micro ATX form factor of 24.4cm x 24.4cm, the GIGABYTE B760M DS3H WIFI6E GEN5 is a dependable motherboard that combines performance, connectivity, and expandability for modern PC designs.
In Bangladesh, you can get original GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard From Star Tech. We have a large collection of latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard comes with 3 years warranty.
The latest price of GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard in Bangladesh is 0৳. You can buy the GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard at best price from our website or visit any of our showrooms.
