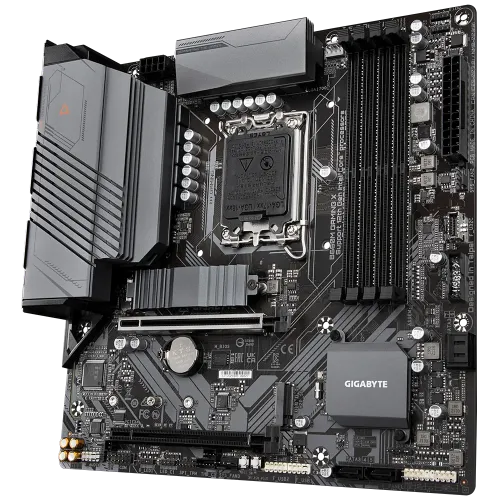

GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard
  • GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard
  • GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard
  • GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard

GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard

Price 20,500৳
Regular Price 21,566৳
Status In Stock
Product Code 29173
Brand GIGABYTE

Key Features

  • Model: B660M GAMING X DDR5
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 5600(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • View More Info

Payment Options

Specification

Basic Information
Supported CPUSupport for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
L3 cache varies with CPU
ChipsetIntel B660 Express Chipset
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
Memory
TypeDDR5
Slots4 x DIMM
Supported MemorySupport for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum MemoryUp to 192 GB (48 GB single DIMM capacity)
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI1 x HDMI 2.1 port
Display Port (s)1 x DisplayPort
USB (s)Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
RAIDSupport for RAID 0, RAID 1, RAID 5, and RAID 10
Audio1 x front panel audio header
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x HDMI 2.1 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty3 Years Warranty

Description

GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard

The GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. It features advanced technologies and components to deliver exceptional performance and reliability. The motherboard is its compatibility with 14th, 13th, and 12th-generation Intel Core processors, ensuring support for the latest and most powerful CPUs. It supports dual-channel non-ECC unbuffered DDR5 memory with 4 DIMM slots, allowing for fast and efficient multitasking. The motherboard utilizes an 8+1+1 hybrid digital VRM design with DrMOS, which provides precise and stable power delivery to the CPU. This design helps to optimize performance and overclocking capabilities. The DDR5 XTREME MEMORY Design with shielded memory routing ensures reliable and high-speed data transmission to the memory modules. To keep the motherboard cool under heavy loads, it features a fully covered thermal design with high-coverage VRM heatsinks. This helps to dissipate heat effectively and maintain optimal operating temperatures. The motherboard also includes dual PCIe 4.0 M.2 slots with thermal guards for ultra-fast NVMe storage options. Connectivity options are plentiful on this motherboard, including a 2.5GbE LAN port for fast and lag-free online gaming. It also offers USB 3.2 Gen 1 Type-C ports for versatile and high-speed connections with compatible devices. The pre-installed IO shield makes installation quick and easy, saving time during setup. The motherboard comes equipped with high-quality audio capacitors and audio noise-guard technology. This ensures clear and immersive sound for an enhanced gaming experience. For customization and aesthetics, the motherboard supports RGB Fusion 2.0, allowing you to synchronize and control addressable LED and RGB LED strips for stunning lighting effects. The Smart Fan 6 feature includes multiple temperature sensors and hybrid fan headers with fan stop functionality, enabling precise control over cooling and noise levels. Updating the BIOS is made easy with the Q-Flash Plus feature, which allows you to update the motherboard's firmware without the need for a CPU, memory, or graphics card. The GIGABYTE B660M GAMING X DDR5 12th Gen Micro-ATX Motherboard offers a powerful and feature-rich platform for gamers and PC enthusiasts, with its robust design, advanced connectivity options, and customizable features.

Buy GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard comes with 3 years warranty.

What is the price of GIGABYTE B660M GAMING X DDR5 Motherboard in Bangladesh?

The latest price of GIGABYTE B660M GAMING X DDR5 Motherboard in Bangladesh is 20,500৳. You can buy the GIGABYTE B660M GAMING X DDR5 Motherboard at best price from our website or visit any of our showrooms.
