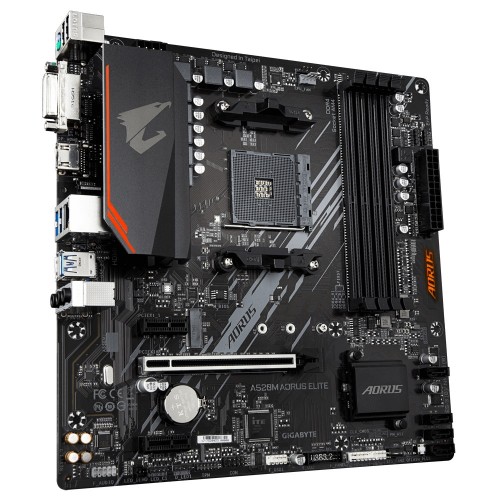

Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard
  • Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard
  • Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard
  • Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard

Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard

Price To be announced
Status Up Coming
Product Code 14116
Brand GIGABYTE

Key Features

  • Model: Gigabyte A520M Aorus Elite
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Smart Fan 5 Features
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2
  • 5+3 Phases Pure Digital VRM Solution
  • View More Info
stars 80 Star Points
info Bundle With PC
Up Coming

Specification

Basic Information
Supported CPUAMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
ChipsetAMD A520
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCICPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Memory
TypeDual channel memory architecture
Slots4 x DDR4 DIMM
Supported Memory3rd Gen AMD Ryzen Processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory128 GB
Graphics
GraphicsIntegrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory16 GB
Connector & Ports
HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
DVI-D (s)1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s)CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
AudioRealtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled SoftwareSupport for Windows 10 64-bit
Warranty Information
Manufacturing Warranty03 years

Description

Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard

The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor-sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design. GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard and your PC from any surge in power delivery that may occur, ensuring that your PC is equipped to deal with any potentially irregular and inconsistent power delivery. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. AMD A520 chipset provides native USB 3.2 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.2 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backward compatibility with USB2.0 and USB3.2 Gen1. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory, and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

What is the price of Gigabyte A520M Aorus Elite Motherboard in Bangladesh?

The latest price of Gigabyte A520M Aorus Elite Motherboard in Bangladesh is 10,500৳. You can buy the Gigabyte A520M Aorus Elite Motherboard at best price from our website or visit any of our showrooms.

Questions (3)

Have question about this product? Get specific details about this product from expert.

Ahnaf IQBAL on 15 Sep 2021

Q: Does it support AmD ryzen 5 3600 proccesor?

A: Yes, Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard supports AMD Ryzen 5 3600 proccesor.

By Star Tech Support 15 Sep 2021

Rakib Rahat on 12 Sep 2021

Q: Can i use Asus Phoenix GeForce GTX 1050Ti 4GB GDDR5 Graphics Card in this motherboard?

A: Yes, you can use Asus Phoenix GeForce GTX 1050Ti 4GB GDDR5 Graphics Card on Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard.

By Star Tech Support 12 Sep 2021

Noob Apon on 10 Sep 2021

Q: Does it support ryzen 3 3300x with gtx 1650ti?

A: Yes, Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard supports Ryzen 3 3300X with GTX 1650TI.

By Star Tech Support 10 Sep 2021
