| Price | To be announced |
| Status | Up Coming |
| Product Code | 44824 |
| Brand | Colorful |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard | |
| Chipset | AMD B650 | |
| BIOS | 128M UEFI, support multiple languages | |
| Form Factor | M-ATX 245mm x 245 mm |
|
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels | |
| Expansion Slots | ||
| PCI | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specifications) 1×PCIe 4.0 x1 slot |
|
| M.2 Socket | 2 M.2 slots - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM |
|
| Supported Memory | Support DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory Support Extreme Memory Profile (XMP) memory technology Support EXtended Profiles for Overclocking (EXPO) memory technology Supports dual channel memory technology |
|
| Maximum Memory | up to 192 GB of memory (a single socket can support up to 48 GB of memory) | |
| Connector & Ports | ||
| HDMI | 1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution | |
| Display Port (s) | 1×DP 1.2 interface, supporting up to 4K 60Hz resolution | |
| USB (s) | -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 2 Type-A interface -1×USB 3.2 Gen 1 Type-C interface |
|
| LAN Port (s) | 1×2.5G network interface RTL8125BG 2.5Gbit LAN |
|
| Wireless Communication module | AX200 WiFi 6 wireless network card, Bluetooth 5.2 | |
| Supported Storage | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) |
|
| RAID | supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices | |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels | |

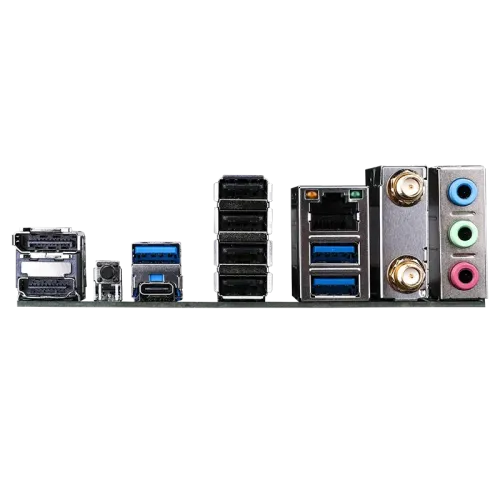

| Internal I/O Ports | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 2 Type-A interface -1×USB 3.2 Gen 1 Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×2.5G network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -1×CPU fan pin -3×System fan pins -1×water cooling pump pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×POST card pin |
|
| Others | ||
| Special Features | Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

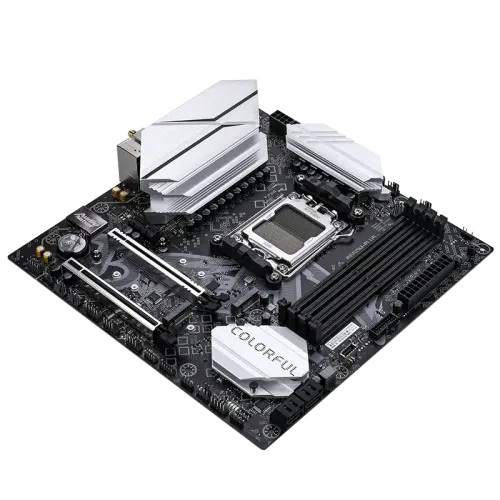

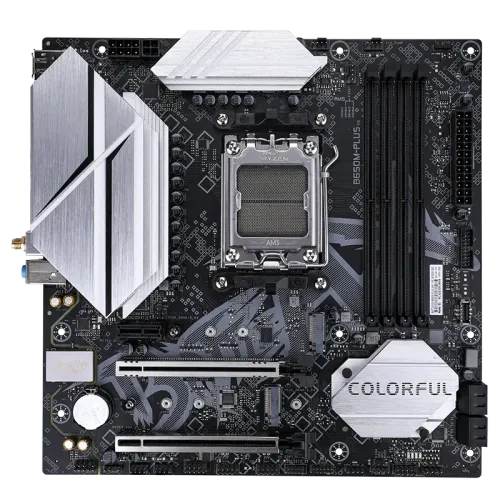

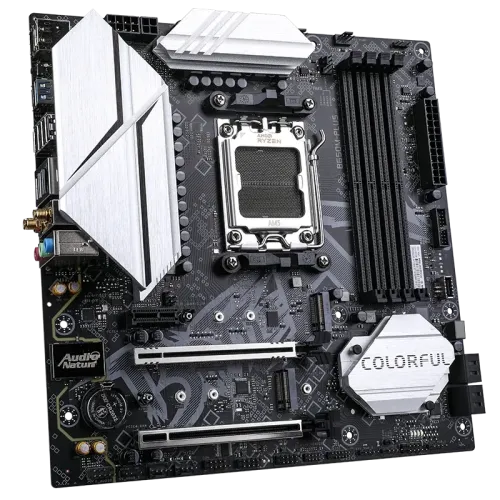

The colorful BATTLE-AX B650M-PLUS WIFI V15 AM5 mATX motherboard is designed for power users, gamers, and producers that require a modern, feature-rich platform with cutting-edge technologies. It supports AMD Ryzen 7000, 8000, and 9000 series CPUs on the AM5 socket, providing future-ready performance for demanding workloads. Memory performance is impressive, with four DDR5 slots enabling up to 192GB total capacity, or 48GB per slot, and speeds of up to DDR5-6800 (OC). The Colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard features dual-channel RAM architecture and support for XMP and EXPO profiles, ensuring stable and optimum overclocking for quicker multitasking and gaming. Two M.2 slots and four SATA 6Gb/s connectors provide exceptional storage versatility, with support for RAID 0, RAID 1, and RAID 10 across SATA or NVMe SSDs. Both M.2 slots enable PCIe 5.0/4.0 x4, depending on the CPU, resulting in lightning-fast read and write speeds. The colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard includes rear I/O and provides users with comprehensive connectivity: four USB 2.0 ports, two USB 3.2 Gen 1 Type-A, one USB 3.2 Gen 2 Type-A, and one USB 3.2 Gen 1 Type-C connector, as well as HDMI 1.4 and DP 1.2 outputs for 4K monitors. A 2.5G LAN port, Wi-Fi 6 via the AX200 wireless card, and Bluetooth 5.2 provide easy device connection. Expansion features one PCIe 5.0 x16 slot for graphics cards, one PCIe 4.0 x16 slot that runs at x4, and one PCIe 4.0 x1 slot for additional gear. The colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard also has several fan headers, a pump header for water cooling, and RGB compatibility via 5V ARGB and 12V RGB headers. The UEFI BIOS supports 128M with multi-language compatibility, and hardware monitoring includes fans, temps, and voltages for complete system control. The audio is driven by the Realtek ALC897 codec, which supports 5.1-channel immersive sound. This mATX board, measuring 245mm x 245mm, is ideal for tiny setups while providing high performance.
In Bangladesh, you can get original Colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard From Star Tech. We have a large collection of the latest Colorful Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard comes with 3 years of warranty.
The latest price of Colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard in Bangladesh is 0৳. You can buy the Colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard at best price from our website or visit any of our showrooms.
