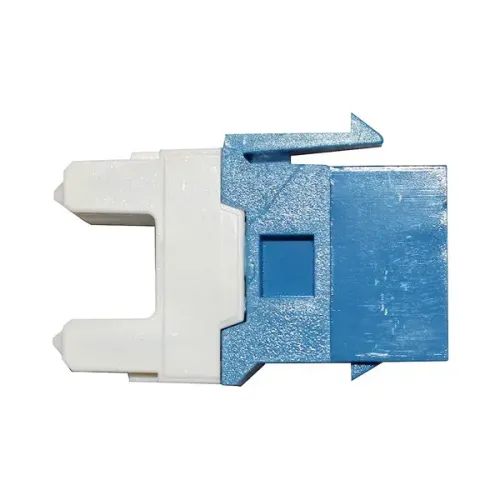

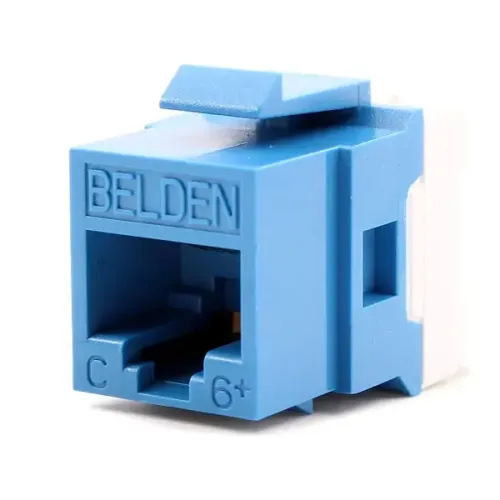

Belden AX104193 CAT6 RJ45 Modular Jack

Belden AX104193 CAT6 RJ45 Modular Jack

The Belden AX104193 CAT6 RJ45 Modular Jack is a premium networking solution designed for high-speed data environments, fully compatible with both RJ45 and RJ11 connections. This Belden AX104193 RJ45 Modular Jack meets strict Category 6 standards, including ISO/IEC 11801:2002 Ed.2 and ANSI/TIA 568.2-D, ensuring reliable, high-performance connectivity. Built with copper alloy and nickel plating, the Belden AX104193 RJ45 Modular provides exceptional durability, rated for 1,000 connection cycles. Its front connection uses copper alloy with 50u inch gold over nickel and a lead frame type, while the rear IDC connection is nickel-plated copper alloy, complemented by a UL94V-0 rated plastic connector body. Compact and lightweight, it measures 0.88" height, 0.64" width, 1.29" depth, and weighs just 0.014 lbs, with a distinct blue color for easy identification. Supporting T568A and T568B wiring schemes, this connector is ideal for applications like IBDN System 2400, 3600, and 4800, TIA Category 6+, ISO Class E, 1000BASE-T Ethernet, and Power over Ethernet (PoE) up to 100W, including Cisco UPOE (up to 60W) and Power over HDBase-T (up to 100W). Each Belden AX104193 RJ45 Modular Jack includes a T-Bar, is individually packaged in a plastic bag, and comes in standard packs of 50 units. Operating reliably between -10°C and +60°C, it is ETL-verified for Category 6 performance, making the Belden AX104193 CAT6 RJ45 Modular Jack a trusted choice for enterprise and commercial networking installations.

Buy Belden AX104193 CAT6 RJ45 Modular Jack from Star Tech

In Bangladesh, you can get original Belden AX104193 CAT6 RJ45 Modular Jack From Star Tech. We have a large collection of latest Belden Cable Connector to purchase for your Networking. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Belden AX104193 CAT6 RJ45 Modular Jack comes with no warranty.
