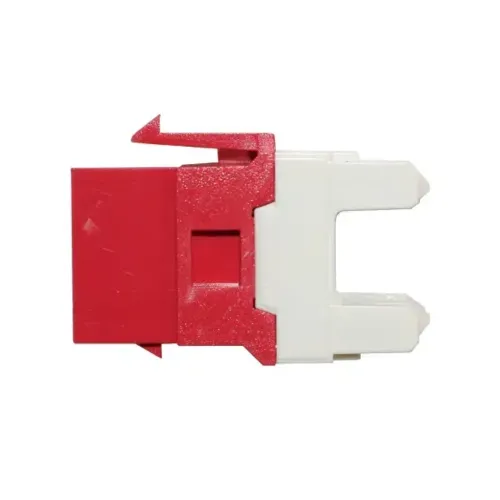

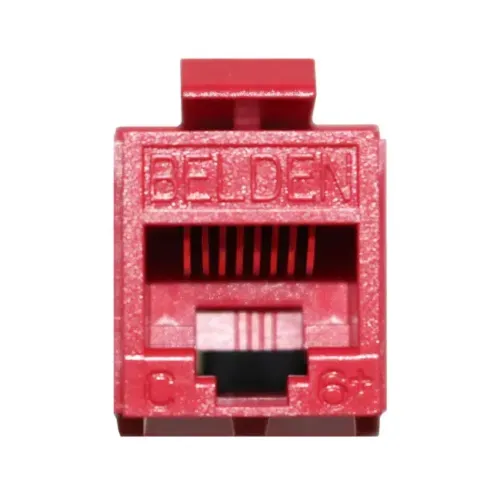

Belden AX104190 CAT6 RJ45 Modular Jack

Belden AX104190 CAT6 RJ45 Modular Jack

The Belden AX104190 CAT6 RJ45 Modular Jack is a high-performance connectivity solution engineered for modern data networks, making it a top choice for anyone seeking a reliable Belden AX104190 RJ45 Modular Jack for professional installations. Fully compatible with RJ45 and RJ11 interfaces, this jack supports robust Category 6 data performance and complies with TIA 568.2-D, ISO/IEC 11801:2002 Ed.2, FCC Part 68 Subpart F, and IEC 60603-7 standards, further reinforced through ETL-verified Category 6 certification. The Belden AX104190 RJ45 Modular design incorporates a copper alloy lead frame with 50 µ-inch gold over nickel for the front connection, paired with a nickel-plated copper alloy IDC rear termination, ensuring long-term reliability with 1,000 mated cycles and 20 gas-tight IDC terminations. It supports T568A/B wiring schemes and is fully compatible with the KeyConnect system, while allowing easy installation using the Belden 110 Connecting Tool or MediaFlex Termination Station. Built for durability, it offers 20 lbs hardware retention and 11.250 lbs plug retention, delivering secure connectivity in any setup. Electrical performance is exceptional, featuring 1,000V RMS dielectric strength, 1.500A current rating, 500 M-Ohm insulation resistance, 20 mOhm maximum contact resistance, and 2.5 mOhm termination resistance. Designed for versatile environments, it operates and installs between –10°C to +60°C, with a storage range of –40°C to +70°C. Compact and efficient, the jack measures 0.88 in height, 0.64 in width, 1.29 in depth, weighs only 0.014 lbs, and comes individually packaged in protective plastic bags with standard packs of 50 units, all enclosed in a UL94V-0 rated plastic body for superior safety and performance.

Buy Belden AX104190 CAT6 RJ45 Modular Jack from Star Tech

In Bangladesh, you can get original Belden AX104190 CAT6 RJ45 Modular Jack From Star Tech. We have a large collection of latest Belden Cable Connector to purchase for your Networking. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Belden AX104190 CAT6 RJ45 Modular Jack comes with no warranty.
