Belden 7814A CAT6 305M UTP Cable Grey

Belden 7814A CAT6 305M UTP Cable Grey

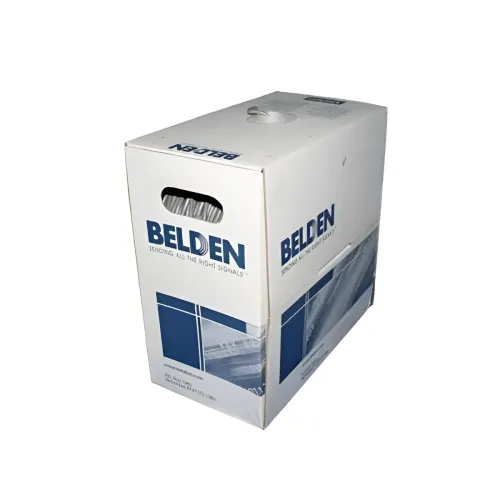

The Belden 7814A CAT6 305M UTP Cable Grey is a premium networking solution engineered for high-speed and stable data transmission, making it an excellent choice for both professional and home network environments. This Belden 7814A CAT6 UTP Cable features 24 AWG solid bare copper (BC) conductors with PO (Polyolefin) insulation and a durable PVC outer jacket, ensuring superior signal integrity and long-term protection. Its 5.8 mm nominal diameter (±0.3 mm tolerance) supports optimal performance up to 250MHz, maintaining a 100 Ohm characteristic impedance that makes the cable ideal for Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite video, AES/EBU, digital video, and RS-422 applications. Packaged conveniently in a Belden 7814A CAT6 UTP Cable Box, it provides a 305-meter continuous run, perfect for structured premise horizontal cabling. Engineered for reliability, the cable offers a max conductor DCR of 93.8 Ohm/km, 538 ns/100m delay, 45 ns/100m delay skew, and a 70% nominal velocity of propagation, ensuring smooth and interference-free performance. It supports an operating voltage of 72 V DC, functions within -20°C to +75°C, and weighs 36 kg/km. With a max pull tension of 110 N and a minimum bend radius of 23.2 mm, the Belden 7814A CAT6 305M UTP Cable Grey is fully compliant with ISO/IEC 11801 standards, ensuring professional-grade reliability for any structured cabling system.

Buy Belden 7814A CAT6 305M UTP Cable Grey From Star Tech

In Bangladesh, you can get the original Belden 7814A CAT6 305M UTP Cable Grey From Star Tech. We have a large collection of the latest UTP Cable to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Belden 7814A CAT6 305M UTP Cable Grey comes with no Warranty.
