close| Price | 199,000৳ |
| Regular Price | 218,900৳ |
| Status | In Stock |
| Product Code | 49289 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series* | |
| Chipset | AMD WRX90 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS(text-based) | |
| Form Factor | EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm) |
|
| Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC* | |
| Expansion Slots | ||
| PCI | AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series Processors* 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode) |
|
| M.2 Socket | 4 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 8 x DIMM | |
| Supported Memory | Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product | |
| Connector & Ports | ||
| USB (s) | Rear USB (Total 9 ports) 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbpsconnector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 1 x Intel® dual 10Gb Ethernet |
|
| Supported Storage | Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports* AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD WRX90 Chipset 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. | |
| Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 5 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) Power related 1 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Chassis intrusion header 1 x COM port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x M.2 slot (Key E) 7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate and onboard thermal pads - M.2 heatsink - Steel backplate - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection BMC Related 1 x BMC switch 1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Message LED header 1 x microSD card socket 2 x LAN LED headers 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header (Dedicated Management for AST2600) 1 x VPP_I2C header |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Fan Xpert 4 ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey IT Management software supported - ASUS Control Center Express(ACCE) |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

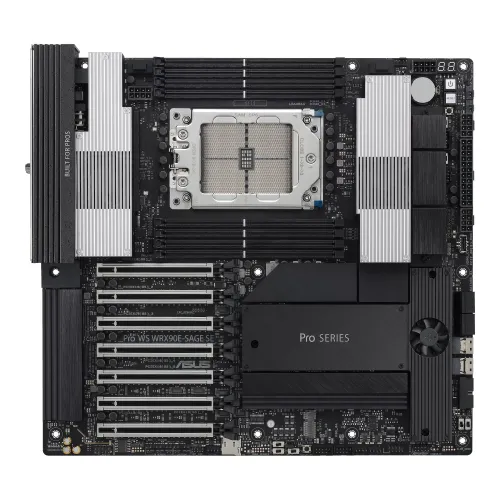

The ASUS Pro WS WRX90E‑SAGE SE Workstation Motherboard is a high‑end platform engineered for professionals who require extreme performance, scalability, and reliability. Built on the AMD WRX90 chipset, this ASUS Workstation Motherboard supports Ryzen Threadripper PRO 9000 & 7000 WX‑Series processors, delivering unmatched computing power for creators, engineers, and enterprise workloads.
Featuring the AMD sTR5 socket, the ASUS Pro WS WRX90E‑SAGE SE is designed for Ryzen Threadripper PRO CPUs, offering up to 96 cores for rendering, simulation, and AI applications. With 8 DDR5 DIMM slots, it supports large memory configurations with high bandwidth, ensuring smooth performance in multi‑threaded and professional computing environments. This ASUS Motherboard for Threadripper CPU is purpose‑built for demanding workstation tasks.
This ASUS WRX90 Workstation Motherboard provides extensive expandability with 6 PCIe 5.0 x16 slots and an additional PCIe 5.0 x16 slot (x8 mode), enabling multi‑GPU setups and accelerator cards. Storage options include 4 M.2 slots supporting PCIe 5.0 NVMe SSDs, 2 SlimSAS ports, and 4 SATA 6Gb/s ports. With AMD RAIDXpert2 technology, users can configure PCIe and SATA RAID 0/1/5/10 for optimized performance and redundancy.

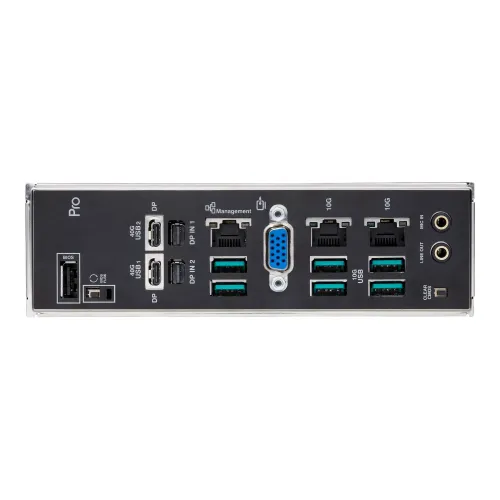

The rear I/O panel offers 2 USB4 Type‑C ports (40Gbps), 6 USB 10Gbps Type‑A ports, and a dedicated management LAN via Realtek 1Gb Ethernet. Dual Intel 10Gb Ethernet ports ensure ultra‑fast networking for data‑intensive workflows. Front panel support includes USB 20Gbps Type‑C, USB 5Gbps, and multiple USB 2.0 headers, making this ASUS Workstation Motherboard ideal for professional setups.
Equipped with Realtek ALC1220P Surround Sound HD Audio CODEC, the ASUS Pro WS WRX90E‑SAGE SE delivers studio‑grade audio with 120 dB SNR playback and 113 dB SNR recording. Premium capacitors, dedicated audio PCB layers, and impedance sensing ensure clear, high‑fidelity sound for professional content creation and multimedia applications.
Designed for 24/7 reliability, the motherboard integrates advanced thermal solutions including VRM heatsinks with active fans, M.2 heatsink backplates, and onboard thermal pads. ASUS 5X Protection III safeguards against overvoltage, ESD, and overcurrent, while Q‑Design features like Q‑DIMM, Q‑Slot, and BIOS FlashBack simplify installation and maintenance. The EEB form factor (12 × 13 inches) ensures compatibility with workstation chassis.
In Bangladesh, you can get original ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard From Star Tech. We have a large collection of latest ASUS Motherboard to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASUS Pro WS WRX80E-SAGE SE WIFI Workstation Motherboard comes with 3 years warranty.
The latest price of ASUS Pro WS WRX90E-SAGE SE Motherboard in Bangladesh is 199,000৳. You can buy the ASUS Pro WS WRX90E-SAGE SE Motherboard at best price from our website or visit any of our showrooms.
