Asus Prime Z590-A Intel 10th and 11th Gen ATX Motherboard
  • Asus Prime Z590-A Intel 10th and 11th Gen ATX Motherboard
  • Asus Prime Z590-A Intel 10th and 11th Gen ATX Motherboard
  • Asus Prime Z590-A Intel 10th and 11th Gen ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

Asus Prime Z590-A Intel 10th and 11th Gen ATX Motherboard

Price To be announced
Status Discontinued
Product Code 15895
Brand Asus

Key Features

  • Model: Prime Z590-A
  • Support for 10th and 11th gen Intel Core Processors
  • AI Overclocking
  • Enhanced power solution
  • Two-way AI Noise Cancelation
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUIntel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
ChipsetIntel Z590 Chipset
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCIIntel 11th & 10th Gen Processors
3 x PCIe 4.0/3.0 x16 slots
- Intel 11th Core processors support PCIe 4.0 x16
- Intel10th processors support PCIe 3.0 x16
Intel Z590 Chipset
1 x PCIe 3.0 x4 slot
M.2 SocketM.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110
- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/ 2260/ 22110 (supports PCIe 3.0 x4 & SATA modes)
Memory
TypeDDR4
Slots4 x DIMM
Supported Memory5333(OC) /5133(OC) /5000(OC) /4800(OC) /4700(OC) /4600(OC) /4500(OC) /4400(OC) /4266(OC) /4133(OC) /4000(OC) /3866(OC) /3733(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3200 /3000 /2933 /2800 /2666 /2400 /2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory128GB
Graphics
Graphics1 x DisplayPort 1.4
1 x HDMITM 2.0
Connector & Ports
HDMI1 x HDMITM 2.0
Display Port (s)1 x DisplayPort 1.4

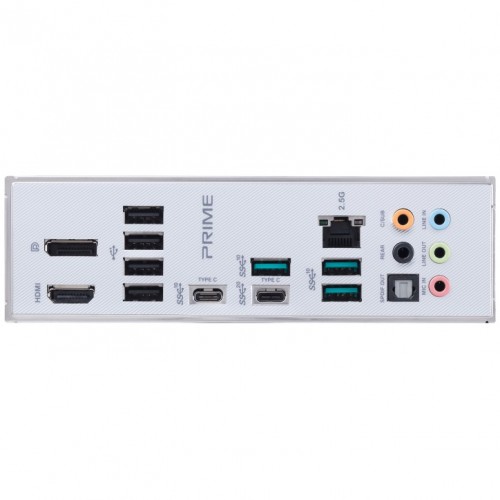

USB (s)Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)1 x Intel I225-V 2.5Gb Ethernet
Supported StorageTotal supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
AudioRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features:
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Audio Shielding
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
Internal I/O PortsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 4-pin VRM_HS Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x CPU Over Voltage jumper
1 x Power button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS Stainless-Steel Back I/O
ASUS Q-Design :
- M.2 Q-Latch
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
- ASUS Q-Slot
ASUS Thermal Solution:
- Aluminum M.2 Heatsink
- Flexible M.2 heatsink
ASUS EZ DIY:
- Procool
- Pre-mounted I/O shield
- ASUS SafeSlot

ASUS Exclusive Software:
Armoury Crate:
- Aura Creator
- Aura Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- 5-way Optimization with AI Overclocking
TPU
EPU
Digi+ VRM
Fan Xpert 4
Turbo app
- EZ update
AI Charger
ASUS CPU-Z
ASUS Turbo LAN
MyAsus
DTS:X® Ultra
UEFI BIOS:
AI Overclocking Guide
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- EZ Tuning Wizard
FlexKey
Warranty Information
Manufacturing Warranty3 Years

Description

Asus Prime Z590-A Intel 10th and 11th Gen ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-A provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime Z590-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover. Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. ASUS 5-Way Optimization makes your PC smart, taking care of complex tuning with just one click. It dynamically optimizes essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig. Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsinks are held in place by captive screws and can be moved to other M.2 slots. Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Stable power is essential to extract every last bit of performance out of 11th Generation Intel Core processors. Prime Z590-A is geared to cater to the demands of these high-core count CPUs. Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

What is the price of Asus Prime Z590-A Motherboard in Bangladesh?

The latest price of Asus Prime Z590-A Motherboard in Bangladesh is 25,500৳. You can buy the Asus Prime Z590-A Motherboard at best price from our website or visit any of our showrooms.
