| Price | 17,500৳ |
| Regular Price | 19,140৳ |
| Status | In Stock |
| Product Code | 44993 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B760 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | Total supports 2 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module |
|
| Maximum Memory | Max. 96GB | |
| Graphics | ||
| Graphics | ** Supports 4K@30Hz as specified in HDMI 1.4. | |
| Connector & Ports | ||
| HDMI | 1x HDMI port | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Wireless Communication module | Wi-Fi 6 | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years warranty | |

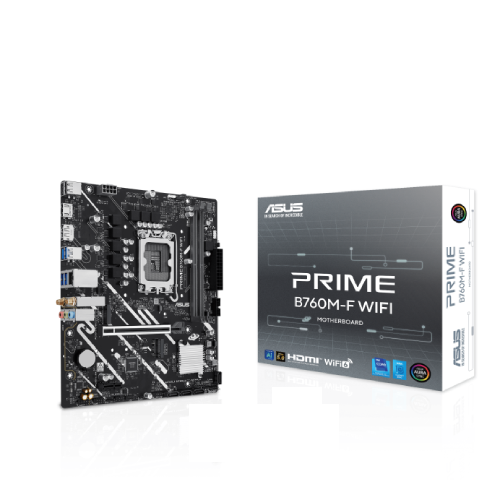

The ASUS PRIME B760M-F WIFI mATX Motherboard is a compact yet powerful solution tailored for modern PC builders seeking next-gen performance, efficient connectivity, and versatile expansion in a micro-ATX form factor. Engineered around the Intel B760 chipset, it supports Intel Core 14th, 13th, and 12th Gen processors, along with Pentium Gold and Celeron CPUs, via the LGA1700 socket, making it ideal for both mainstream users and performance enthusiasts. With support for up to 96GB of DDR5 memory across two DIMM slots, users can unlock blazing-fast speeds up to DDR5-8000 (OC), perfect for multitasking, gaming, and content creation. Storage is equally impressive, featuring two PCIe 4.0 x4 M.2 slots for ultra-fast NVMe SSDs and four SATA 6Gb/s ports for traditional drives, ensuring ample space and speed for demanding workflows. The Asus PRIME B760M-F WIFI board’s expansion capabilities include one PCIe 5.0 x16 slot for high-end graphics cards and one PCIe 4.0 x1 slot for additional peripherals, while onboard connectivity is bolstered by Wi-Fi 6, Realtek 1Gb Ethernet, Bluetooth v5.3, and a rich array of USB ports—including four USB 5Gbps ports, two USB 2.0 ports, and headers for further expansion. Visual output is handled via HDMI and DisplayPort, supporting up to 4K resolution, and audio is delivered through three jacks backed by Realtek HD audio with shielding and premium capacitors for immersive sound. Aesthetically, the Asus PRIME B760M-F WIFI motherboard supports Aura Sync RGB lighting through two Addressable Gen 2 headers, allowing users to personalize their builds with synchronized effects. The 8-pin ProCool power connector ensures stable power delivery, while ASUS’s Fan Xpert 2+ and Digi+ VRM technologies provide intelligent cooling and energy efficiency. With intuitive BIOS controls and AI-enhanced features like two-way noise cancellation, the Asus PRIME B760M-F WIFI offers a balanced blend of performance, reliability, and customization, making it a standout choice for compact, high-performance desktop builds.
In Bangladesh, you can get original Asus PRIME B760M-F WIFI mATX Motherboard From Star Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Asus PRIME B760M-F WIFI mATX Motherboard comes with 3 years warranty.
The latest price of Asus PRIME B760M-F WIFI Motherboard in Bangladesh is 17,500৳. You can buy the Asus PRIME B760M-F WIFI Motherboard at best price from our website or visit any of our showrooms.
