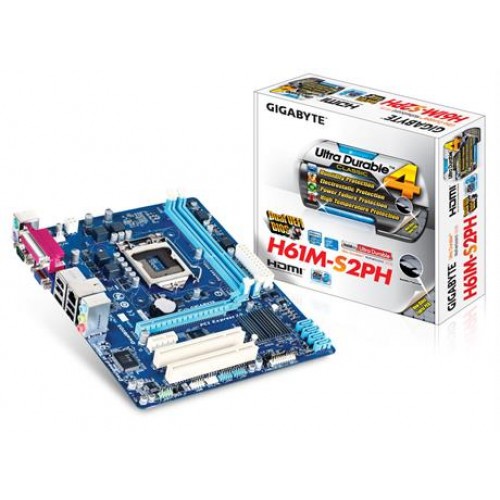

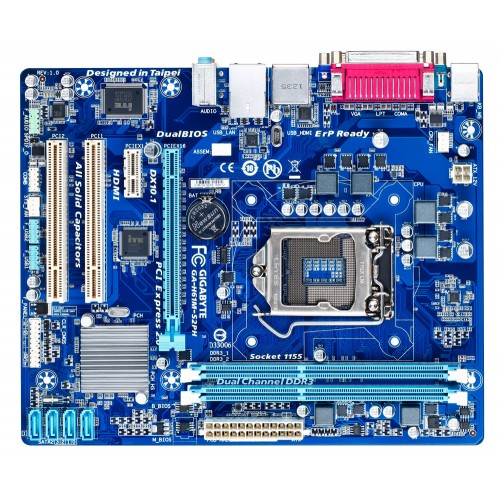

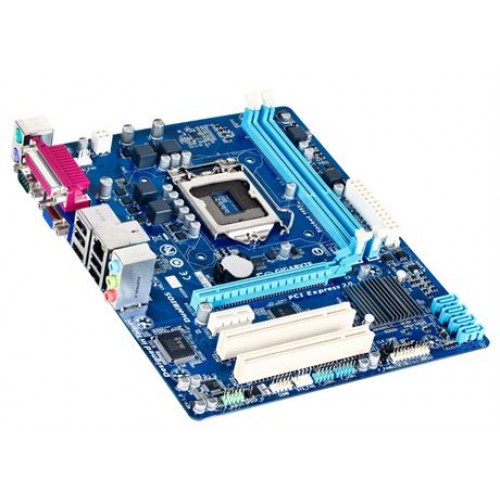

Gigabyte H61M S2PH Motherboard
  • Gigabyte H61M S2PH Motherboard
  • Gigabyte H61M S2PH Motherboard
  • Gigabyte H61M S2PH Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

Gigabyte H61M S2PH Motherboard

Price To be announced
Status Discontinued
Product Code 7577

Key Features

  • Model: GA-H61M-S2PH
  • Intel H61 Express Chipset
  • Supports 3rd Gen. Intel 22nm and 2nd Gen CPUs
  • RAM Slot:2 x 1.5V DDR3 DIMM
  • PCI Slot: 4 x PCI Express
  • View More Info


Basic Information
Supported CPUSupport for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
ChipsetIntel® H61 Express Chipset
BIOS2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for Dual BIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Form FactorMicro ATX Form Factor; 24.4cm x 20cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots
TypeDual channel memory architecture
Slots2 x 1.5V DDR3 DIMM sockets supporting
Supported MemorySupport for DDR3 1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
Maximum Memory16 GB
Graphics1 x D-Sub port
1 x HDMI port, supporting a maximum resolution of 1920x1200
* Support for HDMI 1.4 version.
Max Shared Memory1GB

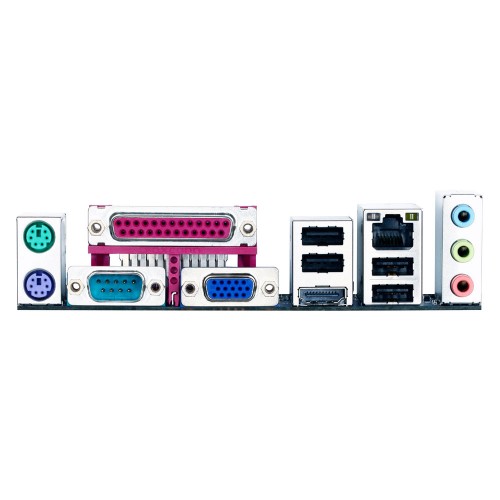

Connector & Ports
HDMI1 x HDMI port
USB (s)Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
AudioRealtek® ALC887 codec
High Definition Audio
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x S/PDIF Out header
1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty03 years


Gigabyte H61M S2PH Micro ATX ultra durable classic design 3rd gen motherboard compatible with Intel 22nm CPUs and 2nd Gen. Intel core processors. It also supports dual channel DDR3 maximum 16GB memory with the capability of PCI Express Gen 3.0 support. Regarding the graphics, it will support integrated Intel HD Graphics and up to 1GB shared graphics memory with one D-Sub port and one HDMI port of 1920x1200 resolution. This latest motherboard has the facility of GIGABYTE Dual UEFI BIOS, HDMI/RGB Display and integrated Intel HD Graphics 2000/3000.
