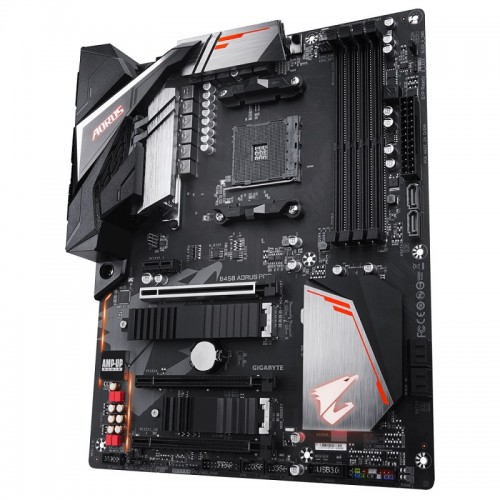

Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
  • Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
  • Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
  • Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard

Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 8542
Brand GIGABYTE

Key Features

  • Model: B450 AORUS PRO
  • Supports Up to AMD Ryzen 5000 series Processors
  • Chipset: AMD B450
  • Memory: 4 x DDR4, Max 64 GB
  • 4 x PCI Express slots
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUAMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors
AMD Ryzen™ 1st Generation processors
ChipsetAMD B450
BIOS2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.
1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
1 x PCI Express x1 slot (PCIEX1_1)
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
Memory
TypeDual Channel DDR4 Memory Technology
Slots4 x DDR4 DIMM
Supported MemorySupport for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory64 GB
Graphics
GraphicsSupport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Connector & Ports
HDMI1 x HDMI port
USB (s)Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports available through the internal USB headers
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)Intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
AudioRealtek® ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x CPU cooler LED strip/RGB LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x RGB (RGBW) LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
Warranty Information
Manufacturing Warranty03 years

Description

Gigabyte B450 AORUS PRO ATX AMD AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Dual Ultra-Fast NVMe PCIe Gen3 M.2 with Dual Thermal Guards and 4 PCIe slots. Considering the graphics, it will support AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies. This exclusive motherboard has the facility of USB Type-Câ„¢, USB 3.1 Gen 2, Intel® GbE LAN with cFosSpeed Internet Accelerator Software and Realtek® ALC1220-VB codec HD Audio connectivity with . This Hybrid Digital PWM board is Intel® GbE LAN with cFosSpeed & CEC 2019 ready.

Purchase Gigabyte B450 AORUS PRO board with 3 years of warranty facility at best price from in Dhaka, Rangpur, Chattagram, Khulna & Sylhet. Order latest AMD board from Star Tech’s online store and have the delivery at any location in Bangladesh.

Questions (7)

Have question about this product? Get specific details about this product from expert.

Sazid Ss on 13 Apr 2022

Q: Does AMD 5600G SUPPORT Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard

A: Yes, Dear Sir, Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard supports this CPU. Thank You.

By Star Tech Support 13 Apr 2022

Muinuddin khan on 21 Jul 2020

Q: Can this motherboard support Ryzen 5 3600 cpu

A: Yes Sir, the Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard can support Ryzen 5 3600 Processor.

By Star Tech Support 21 Jul 2020

Asfak on 09 Feb 2020

Q: Will this motherboard be able to support either Ryzen 5 3500 or 5 3500X Processor?

A: Yes Sir, the Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard will be able to support both the AMD Ryzen 5 3500 and 5 3500X Processor.

By Star Tech Support 09 Feb 2020

Arko on 19 Oct 2019

Q: Can i use ryzen 5 3600 with this mother bord

A: Yes Sir, you can use ryzen 5 3600 with the Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard.

By Star Tech Support 19 Oct 2019

Nafis on 07 Nov 2018

Q: Does it have built in Wi-Fi?

A: No, this motherboard does not have built in Wi-Fi.

By Star Tech Support 07 Nov 2018
