closeBasic Information | ||
Supported CPU | Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
|
Chipset | Intel® B360 Express Chipset | |
BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Form Factor | Micro ATX Form Factor; 24.4cm x 18.5cm | |
Expansion Slots | ||
PCI | 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot |
|
M.2 Socket | 1 x M.2 Socket 3 connector | |
Memory | ||
Type | 2 x DDR4 DIMM sockets supporting | |
Slots | Dual channel memory architecture | |
Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
|
Maximum Memory | 32 GB | |
Graphics | ||
Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. |
|
Max Shared Memory | 1GB | |
Connector & Ports | ||

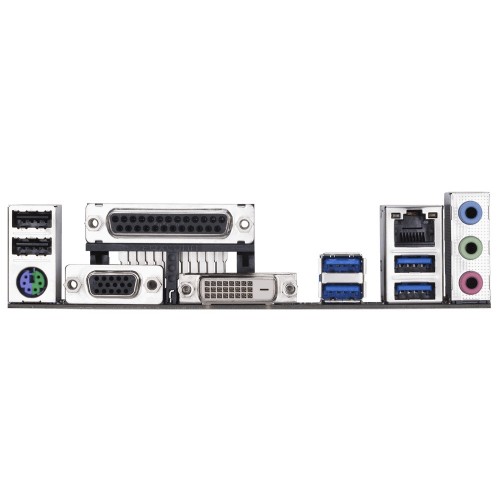

USB (s) | 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready |
|
Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
|
TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
|
Warranty Information | ||
Manufacturing Warranty | 03 years |

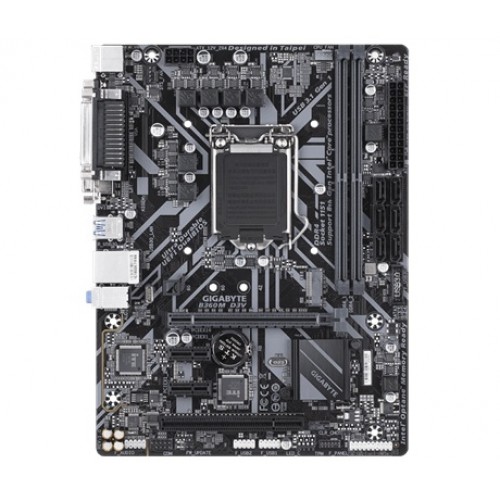

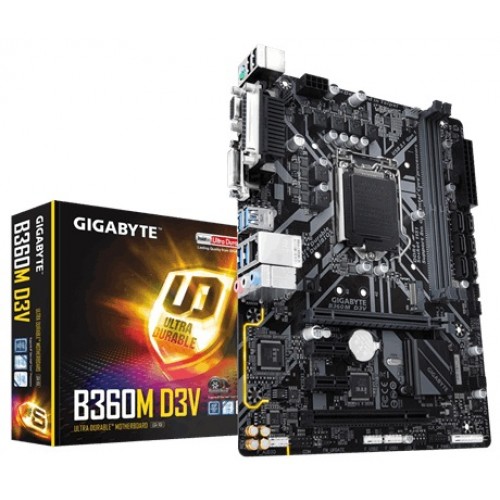

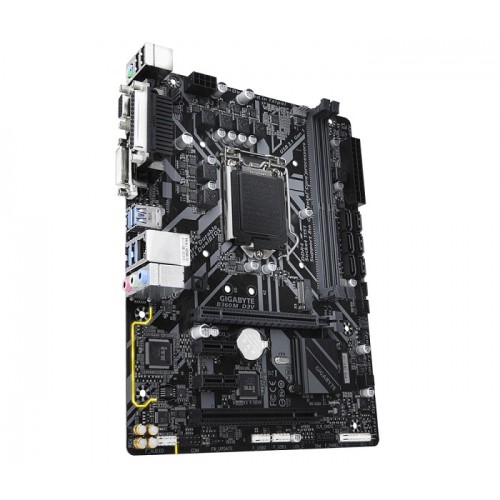

Gigabyte B360M D3V Micro ATX ultra durable hybrid digital PWM design 8th Gen motherboard compatible with i3, i5 & i7 processor supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of ultra-fast M.2 with PCIe Gen3 X4 & SATA interface. Regarding the graphics, it will support integrated Intel HD Graphics and up to 1GB shared graphics memory with the resolution of 1920x1200@60 Hz D-Sub & DVI-D port. This latest motherboard has the facility of GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, DualBIOS and ready for Intel Optane memory & CEC 2019.
Gigabyte 8th gen gaming motherboards are available at best price in Rangpur, Dhaka, Chittagong & Sylhet. Star Tech online shop provides you the opportunity to purchase your favorite board from any place in Bangladesh.
Have question about this product? Get specific details about this product from expert.
A: Sir, Gigabyte B360M D3V 8th Gen Motherboard supports M.2 NVMe SSD.
A: Sir, the Gigabyte B360M D3V 8th Gen Motherboard will support 9th gen i5 or i7 processor with BIOS update.
