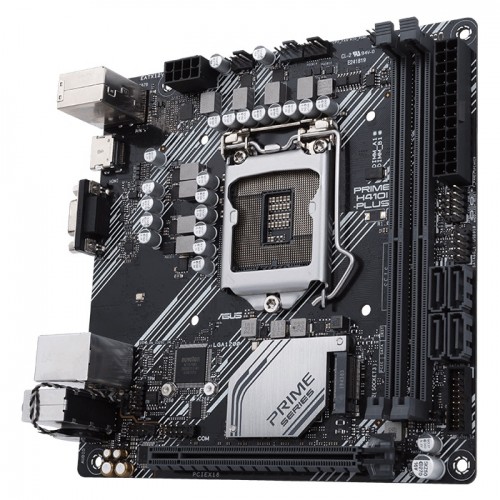

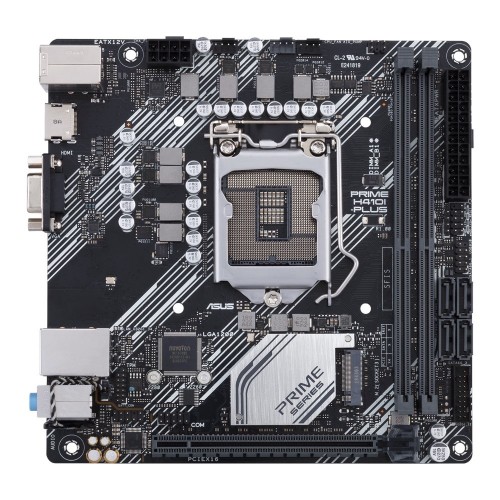

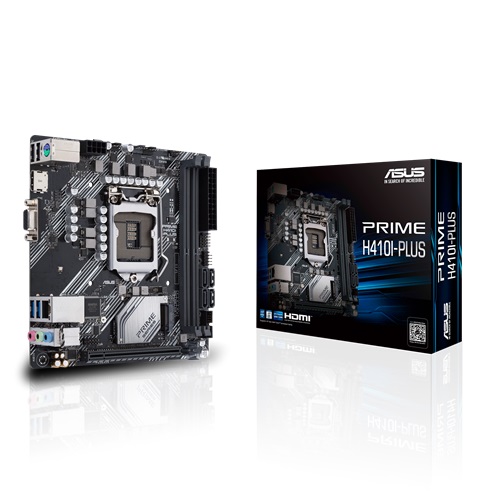

Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard
  • Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard
  • Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard
  • Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard

Price To be announced
Status Discontinued
Product Code 14906
Brand Asus

Key Features

  • Model: Asus Prime H410I-Plus
  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
  • Enhanced power solution
  • ASUS OptiMem II
  • 5X Protection III
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel H410
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form Factor6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Expansion Slots
PCI1 x PCIe 3.0/2.0 x16
M.2 Socket1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
Memory
TypeDual Channel Memory Architecture
Slots2 x DIMM
Supported MemorySupports 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory64GB
Graphics
GraphicsIntegrated Graphics Processor- Intel UHD Graphics support
1 x HDMI 1.4b
1 x D-Sub
Connector & Ports

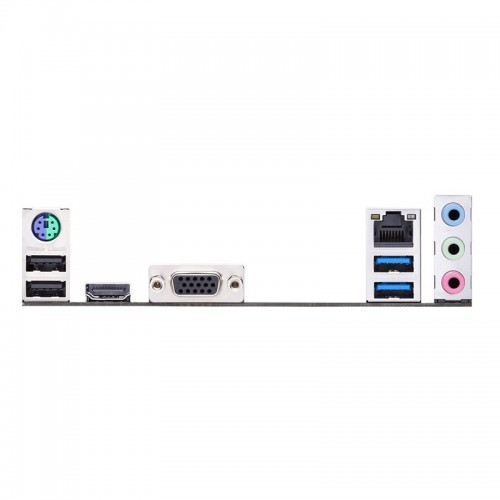

HDMI1 x HDMI 1.4b
D-Sub (s)1 x D-Sub
USB (s)Rear USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
2 x USB 2.0 port(s)
LAN Port (s)Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Supported StorageTotal supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
Intel H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
4 x SATA 6Gb/s port(s)
AudioRealtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Internal I/O Ports1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
TPM (Trusted Platform Module )1 x SPI TPM header
Warranty Information
Manufacturing Warranty03 Years

Description

Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors for daily users and all-round builders use. Combining a robust power design, comprehensive cooling solutions, and intelligent tuning options, Prime H410 provides a wealth of options for performance tuning via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime H410 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Prime H410 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Prime H410 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS. Prime H410 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel Core processors. A H410 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime H410 is geared to cater to the demands of these high-core count CPUs. A VRM with 4+1+1 DrMOS power stages delivers the power and efficiency that the latest Intel processors demand. Prime H410 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Intelligent design and premium hardware create audio quality unlike anything you've ever experienced. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity.

What is the price of Asus Prime H410I-Plus Motherboard in Bangladesh?

The latest price of Asus Prime H410I-Plus Motherboard in Bangladesh is 9,100৳. You can buy the Asus Prime H410I-Plus Motherboard at best price from our website or visit any of our showrooms.
