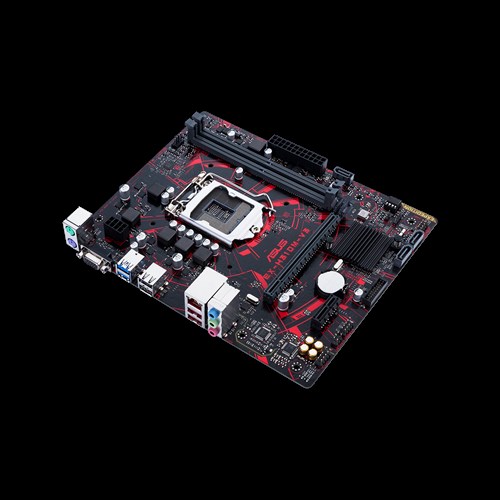

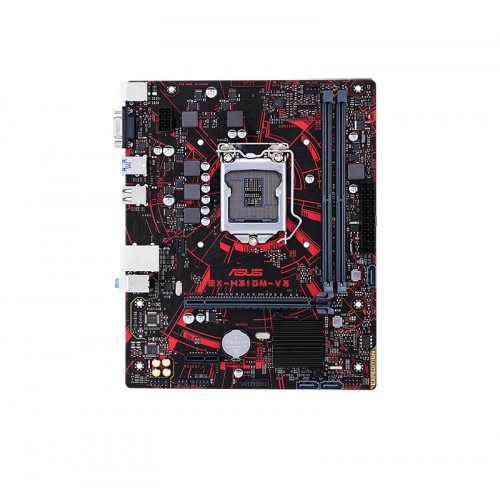

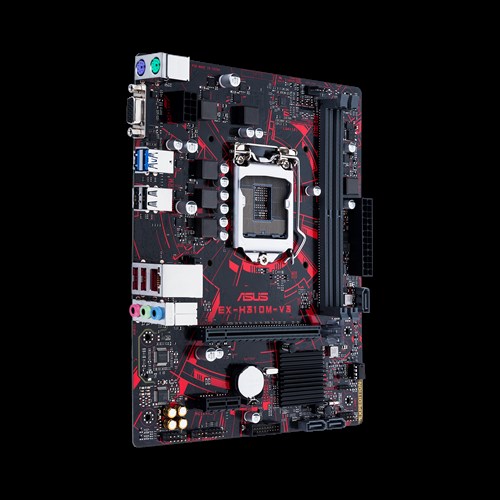

Asus EX-H310M-V3 8th Gen Micro-ATX Motherboard
  • Asus EX-H310M-V3 8th Gen Micro-ATX Motherboard
  • Asus EX-H310M-V3 8th Gen Micro-ATX Motherboard
  • Asus EX-H310M-V3 8th Gen Micro-ATX Motherboard

Asus EX-H310M-V3 8th Gen Micro-ATX Motherboard

Price To be announced
Status Discontinued
Product Code 8805
Brand Asus

Key Features

  • Model: EX-H310M-V3
  • CPU: 8th Generation Intel Processors
  • Chipset: Intel H310
  • 2 x DDR4 DIMM
  • 2 x PCI-E slot
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUIntel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel® H310
Form FactoruATX Form Factor
8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm )
Expansion Slots
PCI1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 2.0 x1
Memory
Type2 x DIMM
SlotsDDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported MemoryThe maximum memory frequency supported varies by processor
Maximum Memory 32GB
Graphics
GraphicsVGA output support : D-Sub port
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory1024 MB

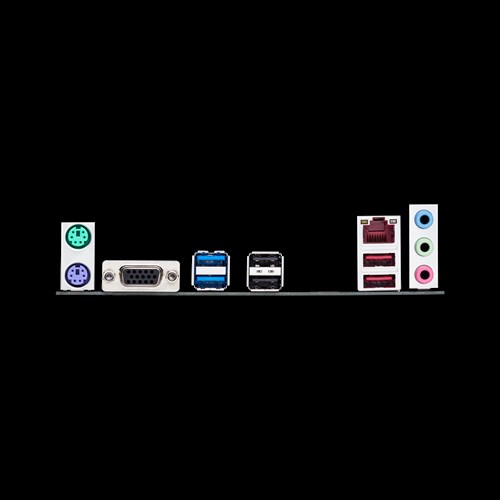

Connector & Ports
D-Sub (s)1 X D-sub
USB (s)Intel® H310 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)
LAN Port (s)Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Supported StorageIntel® H310 Chipset :
3 x SATA 6Gb/s port(s),
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Internal I/O Ports1 x AAFP connector
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
3 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x COM Debug header
1 x Clear CMOS jumper(s)
Warranty Information
Manufacturing Warranty03 years

Description

Asus EX-H310M-V3 Micro-ATX motherboard compatible with Intel 8th gen (Socket 1151) i3, i5 & i7 processor. This luminous anti-moisture coating board also supports dual channel DDR4 maximum 32GB memory and it has the capability of fast SATA 6Gb/s interface.Focusing on the graphics, it will support Intel HD graphics with 1024MB shared graphics memory and having maximum resolution of 1920 x 1200 @ 60 Hz for D-sub slots. This USBGuard motherboard has 8-pin power connector and ASUS 5X Protection.
Include best branded mainboard for your configuration to have optimum performance. Shop online for your desired board and have the delivery any location inside Bangladesh.
