| Price | To be announced |
| Status | Discontinued |
| Product Code | 10191 |
| Brand | ASRock |
| Basic Information | ||
| Supported CPU | - Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1151) - 4 Power Phase design - Supports CPU up to 95W - Supports Intel Turbo Boost 2.0 Technology |
|
| Chipset | - Intel H110 |
|
| BIOS | - 64Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.0V Voltage Multi-adjustment |
|
| Form Factor | - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm - Solid Capacitor design |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps |
|
| Expansion Slots | ||
| PCI | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 1 x PCI Express 2.0 x1 Slot |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | - 2 x DDR4 DIMM Slots | |
| Supported Memory | - Supports DDR4 2400/2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 32GB | |
| Graphics | ||
| Graphics | - Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530/630 - Pixel Shader 5.0, DirectX 12 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) at 24Hz / (3840x2160) at 30Hz - Supports DVI-D with max. resolution up to 1920x1200 at 60Hz - Supports D-Sub with max. resolution up to 1920x1200 at 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports |
|
| Max Shared Memory | 1024MB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| D-Sub (s) | - 1 x D-Sub Port | |
| DVI-D (s) | - 1 x DVI-D Port | |
| USB (s) | Connector: - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O: - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))* - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
|
| LAN Port (s) | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111C/RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports PXE - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug | |
| Audio | Connector: - 1 x Front Panel Audio Connector Rear Panel I/O: - HD Audio Jacks: Line in / Front Speaker / Microphone |
|

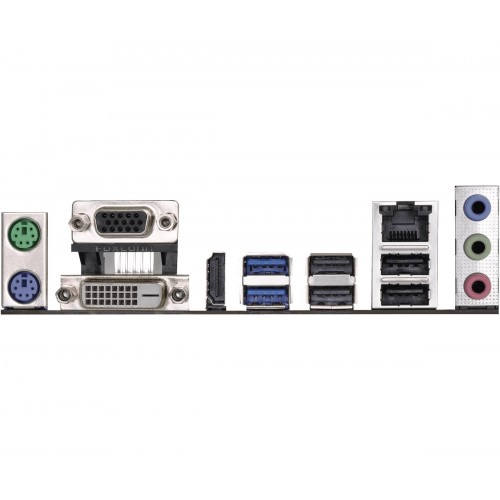

| Internal I/O Ports | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))* - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis Fan Connector (4-pin)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|
| TPM (Trusted Platform Module ) | - 1 x TPM Header | |
| Others | ||
| Special Features | ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop |
|
| Bundled Software | - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI) |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |

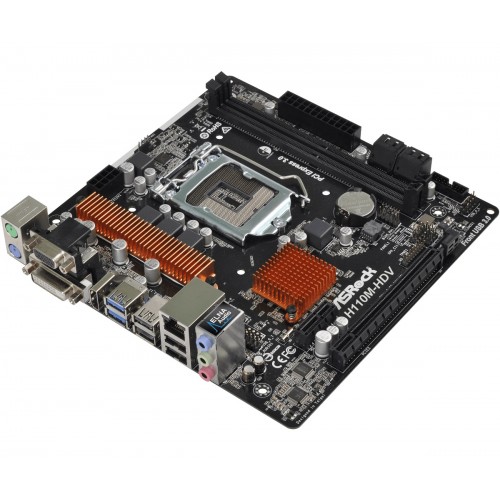

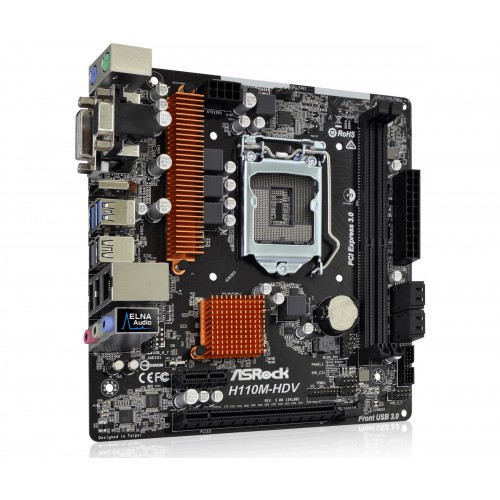

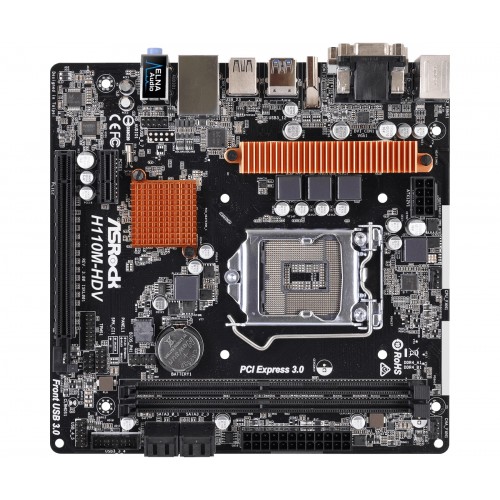

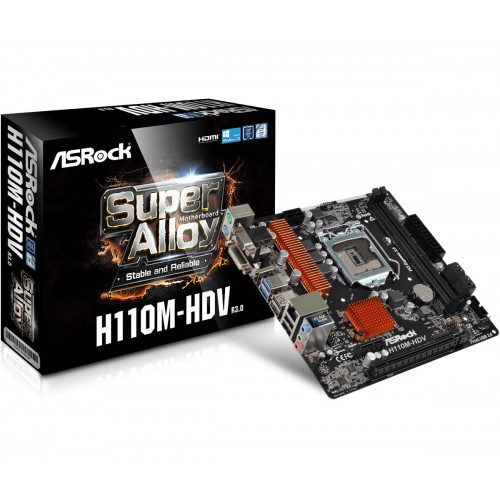

Asrock H110M-HDV R3.0 Super Alloy Motherboard supports 7th and 6th Generation Intel Core Processors (Socket 1151) and 4 Power Phase design and also supports CPU up to 95W with Intel Turbo Boost 2.0 Technology. Here use the Intel H110 Chipset. This Exclusive Motherboard has 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps, 4 SATA3 with 4 USB 3.1 Gen1 (2 Front, 2 Rear), Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm with Solid Capacitor design. In this Motherboard, It has Dual Channel DDR4 Memory Technology (2 x DDR4 DIMM Slots) with supports DDR4 2400/2133 non-ECC, un-buffered memory, ECC UDIMM memory modules (operate in non-ECC mode), Intel Extreme Memory Profile (XMP) 2.0 and max. 32GB memory. This Motherboard also supports 64Mb AMI UEFI Legal BIOS with multilingual GUI, ACPI 5.0 Compliant wake up events with DRAM, PCH 1.0V Voltage Multi-adjustment, SMBIOS 2.7 Support. The Asrock H110M-HDV R3.0 motherboard supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530/630 Graphics with Pixel Shader 5.0, DirectX 12, HDMI with max. resolution up to 4K x 2K (4096x2160) 24Hz / (3840x2160) 30Hz, DVI-D with max. resolution up to 1920x1200 at 60Hz, D-Sub with max. resolution up to 1920x1200 at 60Hz, Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required), Accelerated Media Codecs: HEVC, VP8, VP9, HDCP with DVI-D and HDMI Ports and Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports. It's Motherboard Graphics card Max. shared memory is 1024MB. In this Motherboard, there are three graphics output options, these are - D-Sub, DVI-D and HDMI. It supports Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit operating system. This AsRock Motherboard has some special features , that make it different from others; It's Unique features are ASRock Super Alloy, High Density Glass Fabric PCB, AsRock Full Spike Protection and AsRock Live Update & APP Shop. This H110M-HDV R3.0 Super Alloy Asrock Motherboard comes with 03 years of warranty.
Have question about this product? Get specific details about this product from expert.
A: Yes sir, Asrock H110M-HDV R3.0 Super Alloy Micro ATX Motherboard supports NVIDIA GTX730 2GB Graphics Card.
A: Sorry Sir, the Asrock H110M-HDV R3.0 Super Alloy Micro ATX Motherboard will not be able to support the 4th Gen Intel Core i5 processor.
