Asrock Fatal1ty X99M Killer/3.1 Motherboard
  • Asrock Fatal1ty X99M Killer/3.1 Motherboard
  • Asrock Fatal1ty X99M Killer/3.1 Motherboard
  • Asrock Fatal1ty X99M Killer/3.1 Motherboard

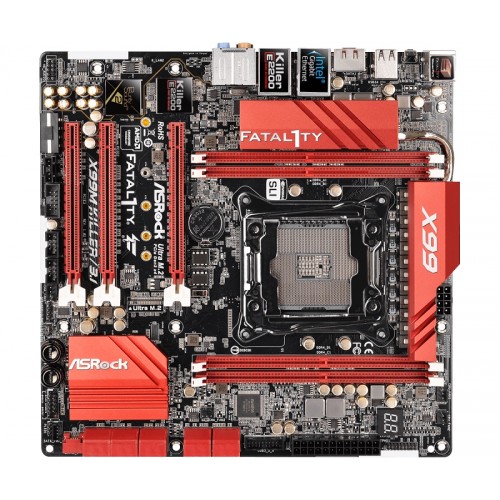

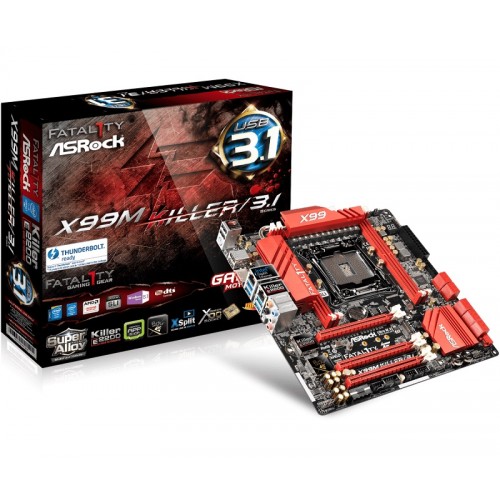

Asrock Fatal1ty X99M Killer/3.1 Motherboard

Price To be announced
Status Discontinued
Product Code 9197
Brand ASRock

Key Features

  • Model: Fatal1ty X99M Killer/3.1
  • Supports Intel Core i7 & Xeon 22-Core Processors
  • Chipset: Intel X99
  • Supports Quad Channel DDR4
  • Max capacity 128GB
  • View More Info
Discontinued

Specification

Basic Information
Supported CPU- Supports Intel® Core™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
- Digi Power design
- 12 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Untied Overclocking Technology
Chipset- Intel® X99
BIOS- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment
Form Factor- Micro ATX Form Factor
- High Density Glass Fabric PCB
Expansion Slots
PCI 2 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE2 @ x16 mode)*
1 x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode)
M.2 Socket1 x Ultra M.2 Socket, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
Memory
TypeQuad Channel DDR4 Memory Technology
Slots4 x DDR4 DIMM Slots
Supported MemorySupports DDR4 3200+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory
- Supports non-ECC RDIMM (Registered DIMM)
- Supports DDR4 ECC, un-buffered memory/RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
Maximum Memory Max. capacity of system memory: 128GB (with Core™ i7 CPU Broadwell-E) or 64GB (with Core™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU)*

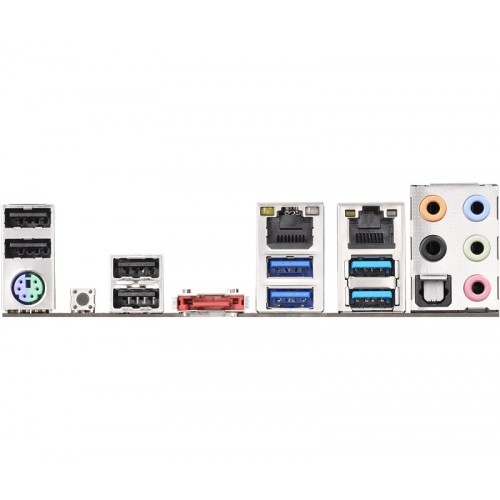

Connector & Ports
USB (s)- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Gen1 Ports (Intel® X99) (Supports ESD Protection (ASRock Full Spike Protection))
LAN Port (s)- 1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb/s)
- 1 x Qualcomm® Atheros® Killer™ E2200 Series (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)
- Supports Qualcomm® Atheros® Security Wake On Internet Technology (on Qualcomm® Atheros® Killer™ E2200 Series)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Supported Storage- 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology*
- 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)
- 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Purity Sound™ 2
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with differential amplifier
- TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect
Internal I/O Ports- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
- 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x HDD Saver Connector
- 1 x PCIe Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector
- 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x BIOS Selection Switch
Warranty Information
Manufacturing Warranty03 years

Description

Asrock Fatal1ty X99M Killer/3.1 micro ATX Super Alloy- Gaming Armor Intel® Core™ i7 and Xeon® 22-Core Processors Family supported Quad Channel DDR4 maximum 128GB memory motherboard has the capability of Ultra M.2 Socket and 2 PCIe 3.0 x16, 1 PCIe 2.0 x16 Slots interface. This 12 Power Phase design board has AMD Quad CrossFireX™ and NVIDIA® Quad SLI™ with Intel® Gigabit LAN + Qualcomm® Atheros® Killer LAN facility. This exclusive motherboard has the facility of 10 SATA3, 1 eSATA, 1 SATA Express, 1 Ultra M.2, 2 USB 3.1 Gen2 Type-A 10Gb/s, 4 USB 3.1 Gen1, 8 USB 2.0 and 7.1 CH HD Audio connectivity.
