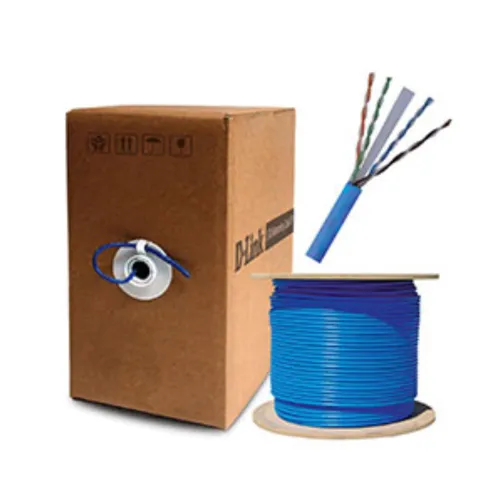

D-Link CAT 6 UTP Cable 305M 23AWG Blue (Original)
Product Page After Image | bKash Cashback

D-Link CAT 6 UTP Cable 305M 23AWG Blue (Original)

Price To be announced
Status Out Of Stock
Product Code 7986
Brand D-Link

Key Features

  • MPN: CB-C6UBLUR-305
  • Model: Panduit Cat 6 UTP Cable
  • 23 AWG solid copper covered
  • Flame rating: Plenum – NFPA 262
  • Riser – UL1666
  • View More Info
stars 50 Star Points
Out Of Stock

Description

D-Link CAT 6 UTP Cable 305M 23AWG Blue (Original)

Category 6 cable shall meet ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E channel standards. The conductors shall be 23 AWG construction with FEP/polyolefin (CMP) or polyolefin (CMR) insulation.The copper conductors shall be twisted in pairs and covered by a low smoke, flame-retardant (CMP) PVC jacket or a flame-retardant (CMR) PVC jacket.

key features and benefits

  • Third party tested: Cable has been tested as part of the Category 6 UTP Copper Cabling System by an independent laboratory and complies with the electrical channel requirements of the following standard: ANSI/TIA-568-C.2 Category 6.
  • Descending length cable markings:  Easy identification of remaining cable reduces installation time and cable scrap.
  • Tested beyond the standards:  Cable has been characterized to 350 MHz, 100 MHz above the standard
  • Easy payout carton: Ensures proper performance and provides quick installation

Specification:

  • Electrical performance: Certified channel performance in a 4-connector configuration up to
  • 100 meters and meets ANSI/TIA-568-C.2 Category 6 and ISO
  • 11801 Class E standards at swept frequencies up to 250MHz
  • Conductors/insulators: Plenum – 23 AWG solid copper covered by FEP/polyolefin insulation
  • Riser – 23 AWG solid copper covered by polyolefin insulation
  • Flame rating: Plenum – NFPA 262
  • Riser – UL1666
  • PoE compliance: Meets IEEE 802.3af and IEEE 802.3at for PoE applications
  • Installation tension: 25 lbf (110N) maximum
  • Temperature rating: 32°F to 122°F (0°C to 50°C) during installation
  • -4°F to 167°F (-20°C to 75°C) during operation (Riser)
  • -4°F to 140°F (-20°C to 60°C) during operation (Plenum)
  • Cable jacket: Plenum – low smoke, flame-retardant PVC
  • Riser – flame-retardant PVC
  • Cable diameter: Plenum – 0.224 in. (5.7mm) nominal
  • Riser – 0.210 in. (5.3mm) nominal
  • Cable weight: Plenum – 29 lbs./1000 ft. (13 kg/305m)
  • Riser – 22 lbs./1000 ft. (10 kg/305m)
  • Packaging: 1000 ft. (305m) in an easy payout carton
  • Package tested to ISTA Procedure1A
