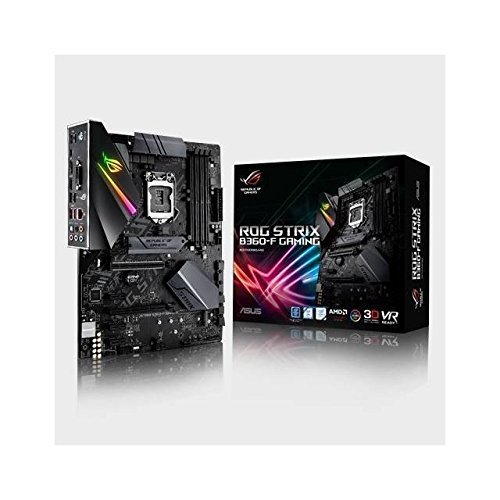

Asus Rog Strix B360-F GAMING 8th Gen Motherboard

Asus Rog Strix B360-F GAMING 8th Gen Motherboard

Price To be announced
Status Discontinued
Product Code 7606
Brand Asus

Key Features

  • Model: Asus Rog Strix B360-F
  • Intel B360 Chipset
  • Intel Socket 1151 for 8th Generation Core Processors
  • RAM Slot: 4 x DIMM
  • PCIe Slot: 6 x PCIe
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUIntel® Socket 1151 for 8th Generation Core™ Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel® B360
BIOS1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 Print Screen, , F4 AURA ON/OFF and F9 Search
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® B360 Chipset
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
4 x PCIe 3.0/2.0 x1 *3
M.2 Socket1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
TypeDual Channel Memory Architecture
Slots4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported MemorySupports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Memory64GB
Graphics
GraphicsSupports HDMI with max. resolution 4096 x 2160 @ 24 Hz
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMISupports HDMI with max. resolution 4096 x 2160 @ 24 Hz
Display Port (s)1 x DisplayPort
USB (s)1 x USB 3.1 Gen 2 (black)USB Type-CTM,
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 2.0
LAN Port (s)1 x LAN (RJ45) port(s)
Supported Storage1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*4
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *5
AudioROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *6
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
Internal I/O Ports1 x AAFP connector
1 x RGB Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
2 x 3D Mount screw port(s)
Warranty Information
Manufacturing Warranty03 years

Description

Asus Rog Strix B360-F ATX 8th gen gaming motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This aura sync RGB board also supports dual channel DDR4 maximum 64GB memory and it has the capability of fast dual M.2 and USB 3.1 Gen 2 Type-A and Type-C interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of 4096 x 2160 @ 24 Hz for HDMI, 1920 x 1200 @ 60 Hz for DVI-D slots and 4096 x 2304 @ 60 Hz for DisplayPort. This AMD 2-Way CrossFireX technology supported motherboard has 6 x PCIe slots, Gigabit Ethernet with LANGuard and GameFirst technology, SupremeFX S1220A teamed with Sonic Studio III for great audio effect, automated system-wide tuning and cooling profiles.
This exclusive Asus Rog Strix mainboard with Intel B360 chipset is a perfect choice for your gaming PC and get the best price in Rangpur, Khulna, Dhaka, Chattagram, Rajshahi & Sylhet. Star Tech online shop provides the opportunity to order online and have the delivery at your place inside Bangladesh.

Questions (1)

Have question about this product? Get specific details about this product from expert.

nasimul ghani shiplu on 06 Nov 2018

Q: Will it support 3200MHz RAM? Will it support?

A: Sir, its maximum supported memory speed is 2666MHz, if you use 3200MHz in it you will get 2666MHz speed, not more than that.

By Star Tech Support 06 Nov 2018
