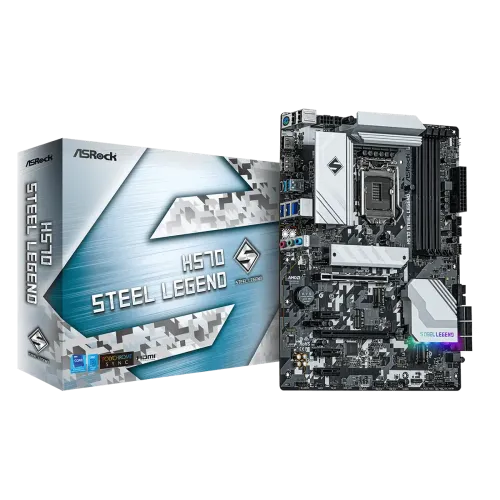

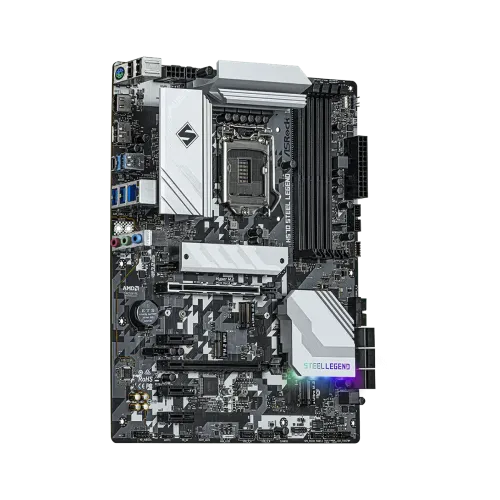

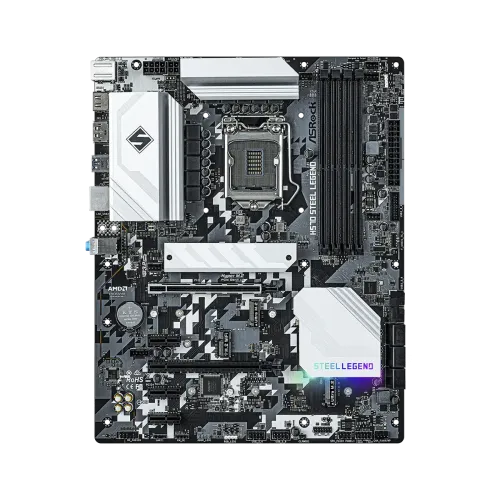

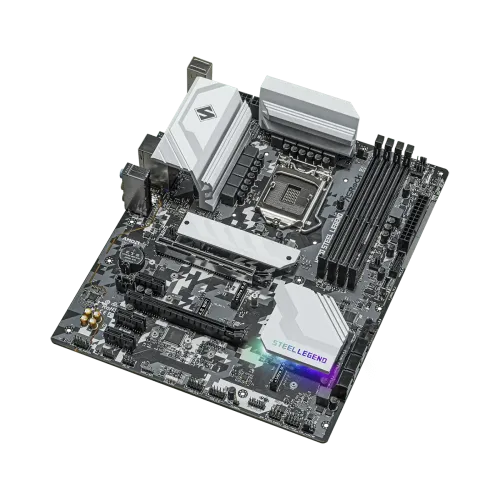

ASRock H570 Steel Legend 10th and 11th Gen ATX Motherboard (No Warranty)
  • ASRock H570 Steel Legend 10th and 11th Gen ATX Motherboard (No Warranty)
  • ASRock H570 Steel Legend 10th and 11th Gen ATX Motherboard (No Warranty)
  • ASRock H570 Steel Legend 10th and 11th Gen ATX Motherboard (No Warranty)
  • ASRock H570 Steel Legend 10th and 11th Gen ATX Motherboard (No Warranty)
Product Page After Image | AC Deal

ASRock H570 Steel Legend 10th and 11th Gen ATX Motherboard (No Warranty)

Price To be announced
Status Out Of Stock
Product Code 28427
Brand ASRock

Key Features

  • Model: H570 Steel Legend
  • Supports 10th Gen and 11th Gen Intel Core Processors
  • 10 Phase Dr.MOS Power Design
  • Supports DDR4 4800MHz (OC)
  • Graphics Output: HDMI, DisplayPort
  • View More Info
stars 180 Star Points
Out Of Stock

Specification

Basic Information
Supported CPU- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
ChipsetIntel H570
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIO, VCCSA, VCCST, VCCIN AUX, VPPM Voltage Multi-adjustment
Form FactorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Nahimic Audio
Expansion Slots
PCI11th Gen Intel Core Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
10th Gen Intel Core Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

- 3 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Memory
TypeDDR4
Slots4 x DIMM Slots
Supported Memory- 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
- 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory128GB
Graphics
Graphics- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel Core Processors
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel Core Processors
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)

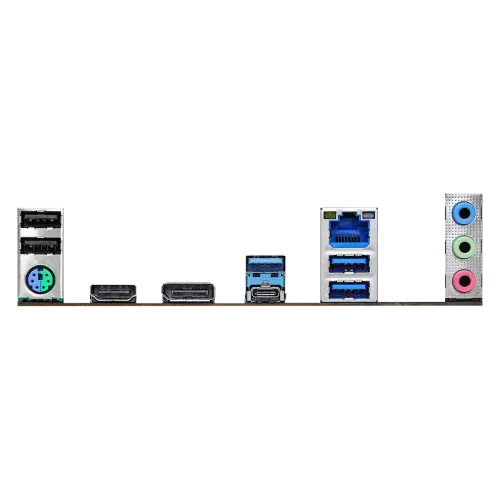

Connector & Ports
HDMI1 x HDMI Port
Display Port (s)1 x DisplayPort 1.4
USB (s)- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
LAN Port (s)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage- 6 x SATA3 6.0 Gb/s Connectors*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
RAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices*
*RAID function for PCIe mode SSD in M2_1 is only available with Intel® SSD installed.
AudioHD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
TPM (Trusted Platform Module )- 1 x SPI TPM Header
Warranty Information
Manufacturing WarrantyNo Warranty

Description

ASRock H570 Steel Legend 10th and 11th Gen ATX Motherboard

ASRock H570 Steel Legend is a motherboard that supports both 10th and 11th Gen Intel Core processors. It features an 8-phase power design and supports DDR4 memory up to 4800MHz (OC). The motherboard includes multiple expansion slots, including one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot, and three PCIe 3.0 x1 slots. It provides two Ultra M.2 slots (PCIe Gen3 x4 and SATA3), one Hyper M.2 slot (PCIe Gen4 x4), and six SATA3 ports for storage. Additionally, the motherboard offers a variety of connectivity options, including USB 3.2 Gen1 ports, USB 2.0 ports, and USB 3.2 Gen2x2 Type-C and Type-A+C ports. It supports ASRock Polychrome SYNC for programmable lighting effects and has a Dragon 2.5 Gigabit LAN. Asrock USB 3.2 Gen2 support, ASRock Super Alloy components, 7.1 CH HD audio with Nahimic Audio and Realtek ALC897 Audio Codec, and ASRock Full Spike Protection for USB, audio, and LAN ports are some additional noteworthy characteristics of the ASRock H570 Steel Legend motherboard. The motherboard has a range of headers and connectors, including RGB LED headers, addressable LED headers, fan connectors, power connectors, and various USB headers. It also offers comprehensive software and UEFI features such as ASRock Motherboard Utility, Dragon 2.5G LAN Software, ASRock Polychrome SYNC, and EZ Mode. The ASRock H570 Steel Legend motherboard follows the ATX form factor and is compatible with Microsoft Windows 10 64-bit and Windows 11 64-bit operating systems. It comes with accessories like SATA data cables, screws for M.2 sockets, a standoff for M.2 socket, a quick installation guide, support CD, and an I/O shield. The motherboard is FCC and CE certified and supports ErP/EuP power-saving standards.

Buy ASRock H570 Steel Legend 10th and 11th Gen Motherboard from the best Motherboard Shop in Bangladesh: Star Tech

In Bangladesh, you can get original ASRock H570 Steel Legend 10th and 11th Gen Motherboard From Star Tech. We have a large collection of latest ASRock Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASRock H570 Steel Legend Motherboard comes with no warranty.

What is the price of ASRock H570 Steel Legend 10th and 11th Gen Motherboard in Bangladesh?

The latest price of ASRock H570 Steel Legend 10th and 11th Gen Motherboard in Bangladesh is 12,000৳. You can buy the ASRock H570 Steel Legend 10th and 11th Gen Motherboard at best price from our website or visit any of our showrooms.
