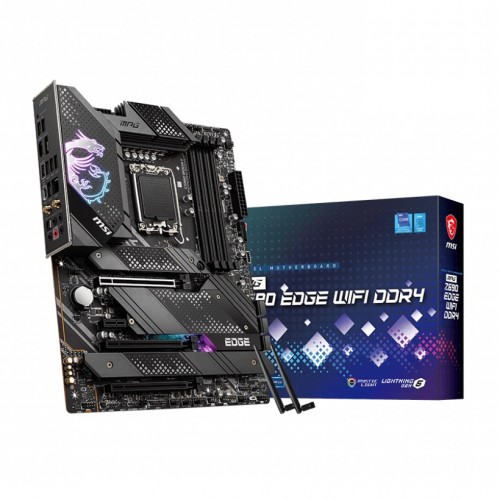

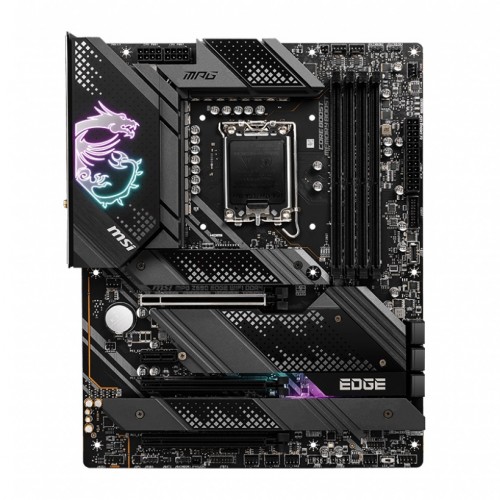

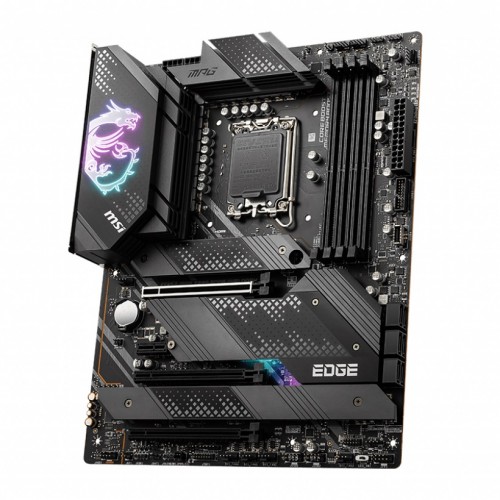

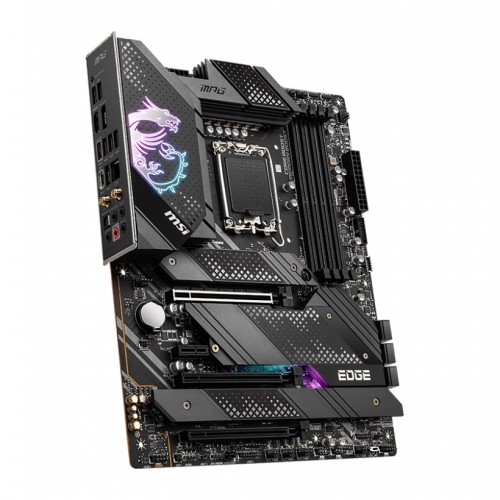

MSI MPG Z690 EDGE WIFI DDR4 ATX Motherboard
  • MSI MPG Z690 EDGE WIFI DDR4 ATX Motherboard
  • MSI MPG Z690 EDGE WIFI DDR4 ATX Motherboard
  • MSI MPG Z690 EDGE WIFI DDR4 ATX Motherboard
  • MSI MPG Z690 EDGE WIFI DDR4 ATX Motherboard
Product Page After Image | bKash Cashback

MSI MPG Z690 EDGE WIFI DDR4 ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 20367
Brand MSI

Key Features

  • Model: MPG Z690 EDGE WIFI DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supports DDR4 Memory, up to 5200+(OC) MHz
  • PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • 2.5G LAN with LAN Manager & Intel Wi-Fi 6 Solution
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUSupport for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
ChipsetIntel Z690 Chipset
Form FactorATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
AudioRealtek ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI3x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 5.0 x16
PCI_E3 & PCI_E4 slots (From Z690 chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot (From Z690 chipset
Memory
TypeDDR4
Slots4x DDR4 memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)1
Max. overclocking frequency:
1DPC 1R Max speed up to 5200+ MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory128GB
Graphics
Graphics1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Supports AMD CrossFire Technology
Connector & Ports
HDMI1x HDMI 2.1 with HDR port
Display Port (s)1x DisplayPort 1.4 with HBR3
USB (s)Intel Z690 Chipset

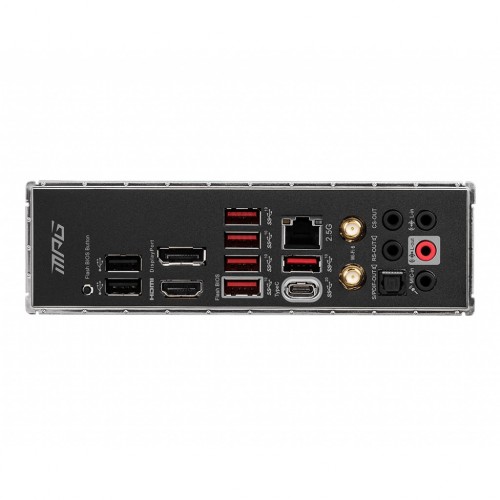

1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel)
2x USB 2.0 Type-A ports on the back panel
2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors
LAN Port (s)1x Intel I225V 2.5Gbps LAN controller
Wireless Communication moduleIntel Wi-Fi 6
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2
Supported Storage6x SATA 6Gb/s ports
SATA5~8 (From Z690 Chipset)
SATAA~B (From ASMedia ASM1061)
2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia
ASM1061)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2~4 support Intel Optane Memory
Supports Intel Smart Response Technology for Intel Core processors

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper
1x Tuning controller connector
1x TBT connector (Supports RTD3)
TPM (Trusted Platform Module )1x TPM module connector
Warranty Information
Manufacturing Warranty3 years

Description

MSI MPG Z690 EDGE WIFI DDR4 ATX Motherboard

The MSI MPG Z690 EDGE WIFI DDR4 Motherboard supports 14th, 14th, 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR4 Memory, up to 5200+(OC) MHz. It delivers a Lightning Fast Game experience with PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with an Enhanced Power Design. Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. 16.8 million colors / fancy lighting effects can be controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices. The MSI MPG Z690 EDGE WIFI DDR4 comes with a 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has a 6-layer PCB made of 2oz thickened copper and server-grade level material. The MSI MPG Z690 EDGE WIFI comes with 3 years of warranty.

What is the price of MSI MPG Z690 EDGE WIFI DDR4 Motherboard in Bangladesh?

The latest price of MSI MPG Z690 EDGE WIFI DDR4 Motherboard in Bangladesh is 40,500৳. You can buy the MSI MPG Z690 EDGE WIFI DDR4 Motherboard at best price from our website or visit any of our showrooms.
