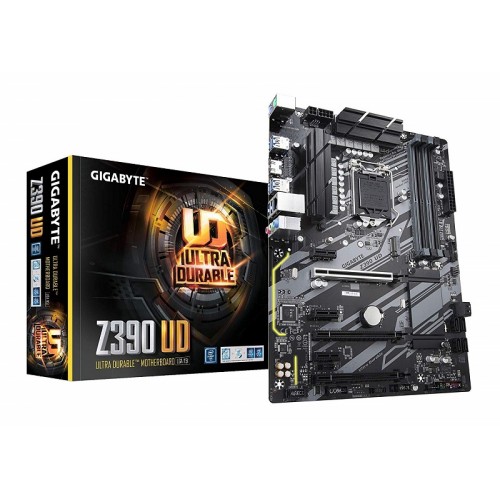

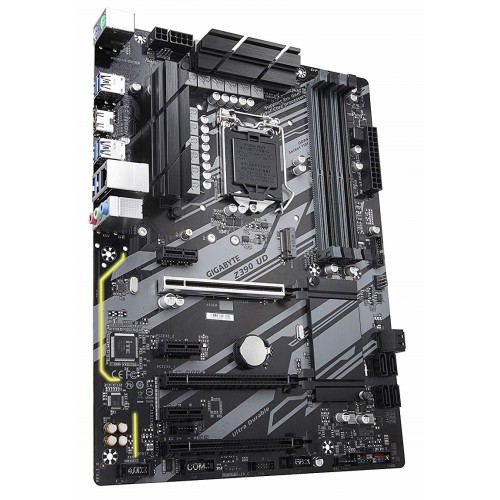

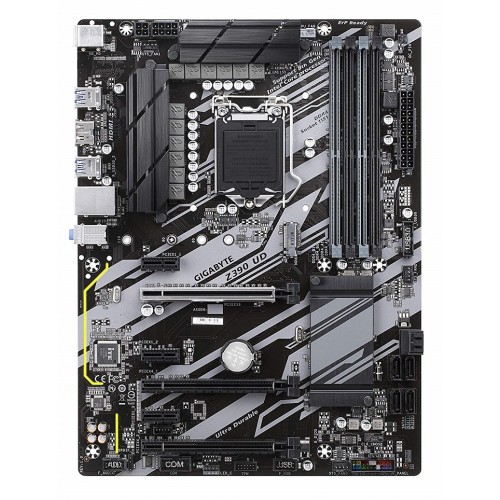

Gigabyte Z390 UD 9th Gen ATX Motherboard
  • Gigabyte Z390 UD 9th Gen ATX Motherboard
  • Gigabyte Z390 UD 9th Gen ATX Motherboard
  • Gigabyte Z390 UD 9th Gen ATX Motherboard
Product Page After Image | bKash Cashback

Gigabyte Z390 UD 9th Gen ATX Motherboard

Price To be announced
Status Discontinued
Product Code 8700
Brand GIGABYTE

Key Features

  • Model: Z390 UD
  • Chipset: Intel Z390 Express
  • Intel Socket LGA1151 for 9th/8th Gen Processors
  • 4 x DIMM, Max. 64GB DDR4
  • 6 x PCIe slots
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupport for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
ChipsetIntel® Z390 Express Chipset
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX Form Factor; 30.5cm x 23.0cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Memory
TypeDDR4
Slots4 x DDR4 DIMM sockets
Supported MemorySupport for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory64 GB
Graphics
Graphics1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory1 GB

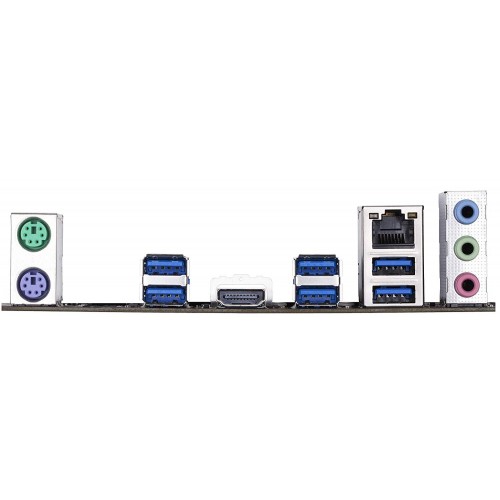

Connector & Ports
HDMI1 x HDMI
USB (s)8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports available through the internal USB header
LAN Port (s)Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
AudioRealtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x S/PDIF Out header
1 x Thunderbolt™ add-in card connector
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty03 Years

Description

Gigabyte Z390 UD ATX motherboard compatible with Intel 9th & 8th gen (Socket LGA1151) i3, i5, i7 & i9 processors. This dual channel non-ECC unbuffered with high quality board has maximum 64GB DDR4 memory and it has the capability of dual ultra-fast M.2, NVMe PCIe Gen3 connector & SATA interface. If we consider the graphics of this multi-way support with PCIe Armor and Ultra Durable™ Design board has Intel HD graphics having the maximum resolution of 4096x2160@30 Hz for HDMI port. This Lightning-Fast Intel® Thunderbolt™ 3 AIC board has 6 x PCIe slots, Exclusive 8118 Gaming LAN with Bandwidth Management, CEC 2019 Ready, Save Power With a Simple Click and RGB Light Strip in Full Colors.
Gigabyte new 10+2 phases digital PWM design 9th gen mainboard with Intel Z390 Express chipset is a great choice for your gaming setup and have it in best price in Bangladesh. Order online from Star Tech online shop and have the delivery at any location.
