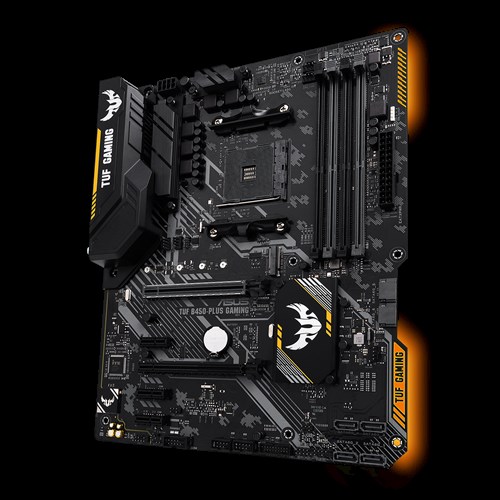

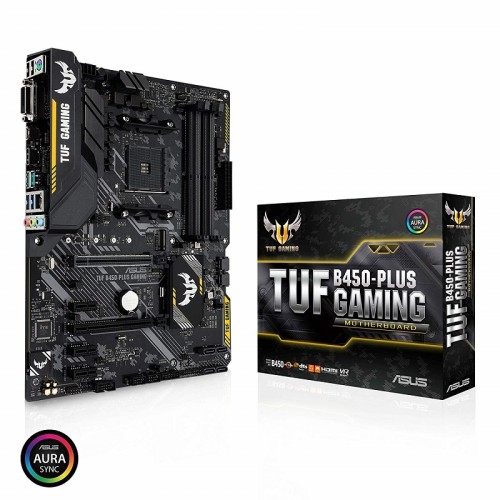

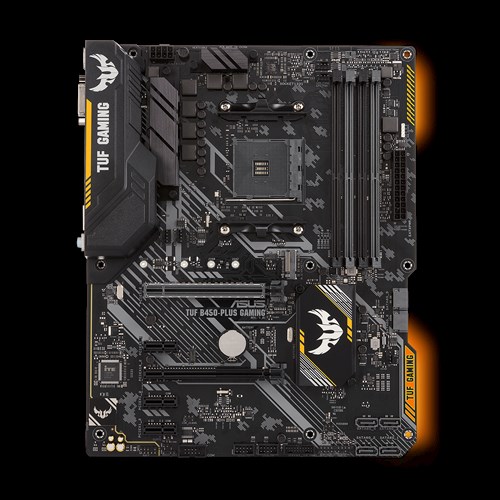

Asus TUF B450-PLUS GAMING AMD ATX Motherboard
  • Asus TUF B450-PLUS GAMING AMD ATX Motherboard
  • Asus TUF B450-PLUS GAMING AMD ATX Motherboard
  • Asus TUF B450-PLUS GAMING AMD ATX Motherboard

Asus TUF B450-PLUS GAMING AMD ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 8825
Brand Asus

Key Features

  • Model: TUF B450-PLUS GAMING
  • CPU: AMD Ryzen
  • Chipset: AMD B450
  • Memory: 4 x DDR4, Max 64 GB
  • 7 x PCI Express slots
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUAMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
Supports CPU up to 8 cores
ChipsetAMD B450
BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Form FactorATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCIAMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1
M.2 Socket1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
Memory
TypeDual Channel DDR4 Memory Technology
Slots4 x DIMM
Supported MemoryDDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Maximum Memory64 GB
Graphics
GraphicsMulti-VGA output support : HDMI/DVI-D ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

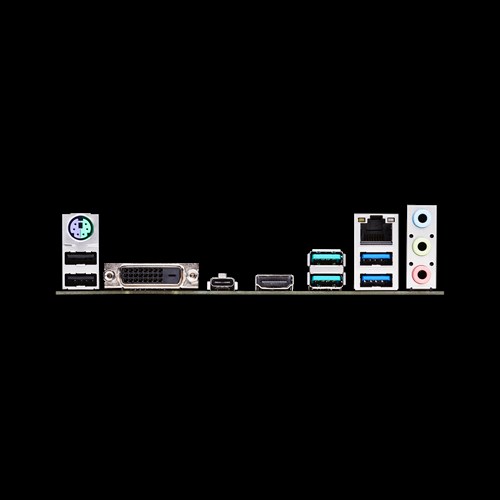

Connector & Ports
HDMI1 x HDMI port
DVI-D (s)1 xDVI-D
USB (s)AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
AMD B450 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
LAN Port (s)Realtek® RTL8111H
TUF LANGuard
Supported StorageAMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
2 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
AMD B450 chipset :
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
AudioRealtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
Internal I/O Ports1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Warranty Information
Manufacturing Warranty03 years

Description

Asus TUF B450-PLUS GAMING ATX AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory AMD motherboard has the Ultra-Fast 32Gbps M.2, HDMI 2.0b, Type C and native USB 3.1 Gen 2 Interface. Considering the graphics, it will support maximum resolution of 4096 x 2160 @ 60 Hz for HDMI and 1920 x 1200 @ 60 Hz for DVI-D ports for Multiple Display. This Aura Sync RGB motherboard has the facility of SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliable TUF Protection. This AMD CrossFireXâ„¢ Technology supported board has GPU Temperature Sensing & Fan Xpert 4 Core and Military-grade TUF Components such as TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability.

Purchase TUF B450-PLUS GAMING board with 3 years of warranty facility at best price from Star Tech. Order latest AMD board from Star Tech’s online store and have the delivery at any location in Bangladesh.

Questions (4)

Have question about this product? Get specific details about this product from expert.

Hossain on 25 Mar 2020

Q: Does it come with BIOS version 1201 or higher now?
Or it needs manual BIOS update to use with Ryzen 3000 series?

A: Dear Customer, You will need to update the Motherboard Bios in order to use Ryzen 3000 series processors. Thank You

By Star Tech Support 25 Mar 2020

Abir Ahmed on 01 Nov 2019

Q: Will this motherboard support Samsung NVMe SSD?

A: Sorry Sir, the Asus TUF B450-PLUS GAMING AMD ATX Motherboard will not support Samsung NVMe SSD as the M.2 port only supports SATA SSD.

By Star Tech Support 01 Nov 2019

zarif on 24 Aug 2019

Q: Will it support AMD Rygen 3400G Processor?

A: Yes Sir, the Asus TUF B450-PLUS GAMING AMD ATX Motherboard will support the AMD Rygen 3400G Processor but it will require a bios update for the motherboard.

By Star Tech Support 24 Aug 2019

Maruf Mahmud on 12 Aug 2019

Q: Will it support Ryzen 3600 processor? I also need to be sure about stock because I am willing to buy on 19th instant (processor + MOBO) . Will it be available then?

A: Yes Sir, This motherboard will support AMD Ryzen 5 3600 Processor and both product are available in our stock. Welcome to our shop sir.

By Star Tech Support 12 Aug 2019
