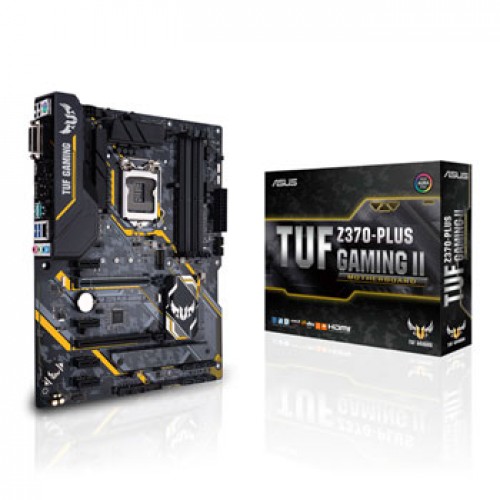

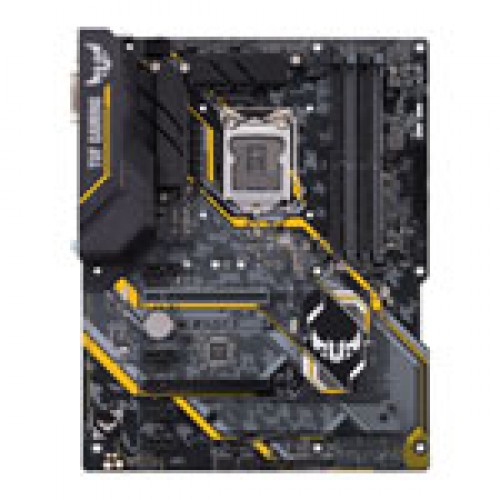

Asus TUF Z370-PLUS GAMING II 9th Gen gaming Motherboard

Price	To be announced
Status	Discontinued
Product Code	8936
Brand	Asus

Key Features

Model: Asus TUF Z370-PLUS GAMING II
Supports Intel 9th / 8th Gen Intel Core, Pentium, Celeron
Chipset- IntelÂ® Z370
Socket 1151
Maximum Mamory 64GB
View More Info

Discontinued

Specification
Description
Questions (0)
Reviews (0)

Specification

Basic Information
Supported CPU	Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® Z370
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.1, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor	ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 4 x PCIe 3.0/2.0 x1
M.2 Socket	1 x M.2 Socket 3 with M Key
Memory
Type	4 x DIMM DDR4
Slots	Dual Channel Memory Architecture
Supported Memory	Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	64GB
Graphics
Graphics	Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Multi-VGA output support : HDMI/DVI-D ports
Max Shared Memory	1024 MB

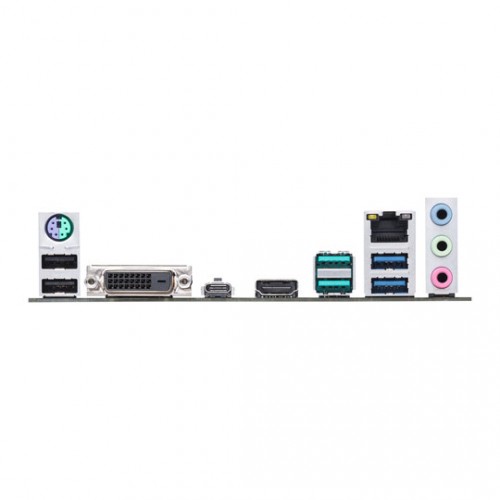

Connector & Ports
HDMI	1 x HDMI
DVI-D (s)	1 x DVI-D
USB (s)	ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, +teal blue, Type-A) Intel® Z370 Chipset : 1 x USB 5Gb/s port(s) port(s) Intel® Z370 Chipset : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, +blue) Intel® Z370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, )
LAN Port (s)	Intel® I219V, 1 x Gigabit LAN Controller(s) ASUS Turbo LAN Utility TUF LANGuard
Supported Storage	Intel® Z370 Chipset : 1 x M.2 Socket 31, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 32, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
Audio	Back I/O Ports 3 x Audio jack(s) 1 x Front panel audio connector(s) (AAFP)
Internal I/O Ports	2 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x AIO PUMP Header
Warranty Information
Manufacturing Warranty	02 years

Description

Asus TUF Z370-PLUS GAMING II Ready for Socket 1151 for 9th / 8th Gen IntelÂ® Coreâ„¢, PentiumÂ® Gold and CeleronÂ® processors. ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking. Exclusive DTS Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action. TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability. TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability.Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics. Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.
