| Price | To be announced |
| Status | Out Of Stock |
| Product Code | 19709 |
| Brand | ASRock |
| Basic Information | ||
| Supported CPU | - Supports 14th, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 13 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel Z690 | |
| BIOS | - 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design - 2oz Copper PCB |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Gold Audio Jacks - Nahimic Audio |
|
| Expansion Slots | ||
| PCI | - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3)) - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire |
|
| M.2 Socket | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Wireless Communication module | Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
| Supported Storage | - 8 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Gold Audio Jacks - Nahimic Audio |
|

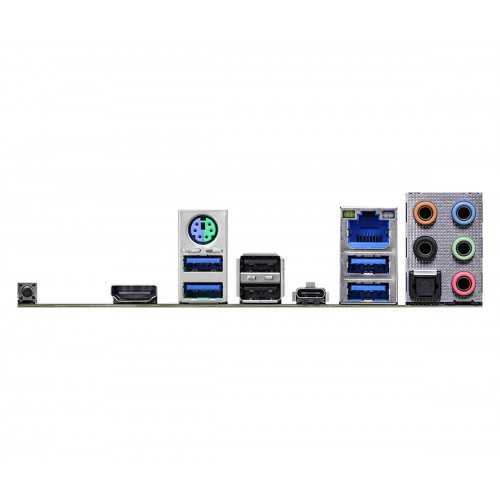

| Internal I/O Ports | - 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Special Features | ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 55A Dr.MOS - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke) - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Killer 2.5G LAN ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) |
|
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC |
|
| Warranty Information | ||
| Manufacturing Warranty | No Warranty | |

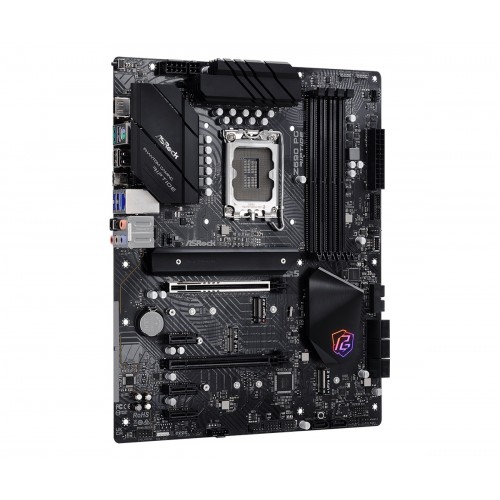

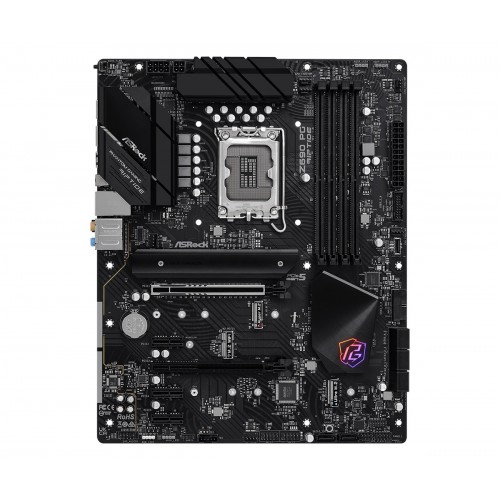

ASRock Z690 PG Riptide motherboard Supports 14th, 13th Gen & 12th Gen Intel Core Processors (LGA1700)), 13 Phase Dr.MOS Power Design, DDR4 4800MHz (OC). This Motherboard featured with 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi, Graphics Output Options: HDMI, Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio, 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4). This ASRock motherboard also has 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 USB 3.2 Gen2x2 Rear Type-C, 2 USB 3.2 Gen2 (Rear), 1 USB 3.2 Gen1 Front Type-C, 6 USB 3.2 Gen1 (2 Rear, 4 Front), Killer E3100 2.5G LAN, Lightning Gaming Ports. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards.
In this motherboard, the Killer E3100 2.5 Gbps Ethernet controller is designed specifically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provide the ultimate networking experience for gaming and multimedia applications.
This motherboard featured comes with via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio, that offers you the most engaging listening experience, vibrant and rich with details.
The ASRock Z690 PG Riptide has Lightning Gaming Ports. These Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high-speed mice/ keyboard with the lower jitter and latency.
In this ASRock 12th Gen motherboard, the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects also
This ASRock Z690 PG Riptide motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD. This 12th Gen ASRock motherboard is also capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. The latest ASRock Z690 PG Riptide Motherboard comes with no warranty.
The latest price of ASRock Z690 PG Riptide Motherboard in Bangladesh is 17,500৳. You can buy the ASRock Z690 PG Riptide Motherboard at best price from our website or visit any of our showrooms.
