| Price | To be announced |
| Status | Discontinued |
| Product Code | 16828 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z590 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Mini ITX: 17cm x 17cm | |
| Expansion Slots | ||
| PCI | Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th Gen processors supports PCIe 4.0 x16 mode - Intel 10th Gen processors supports PCIe 3.0 x16 mode |
|
| M.2 Socket | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel Core processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively. |
|
| Maximum Memory | 64GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | 1 x HDMI 2.0 | |
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.0 | |
| D-Sub (s) | 1 x D-Sub | |

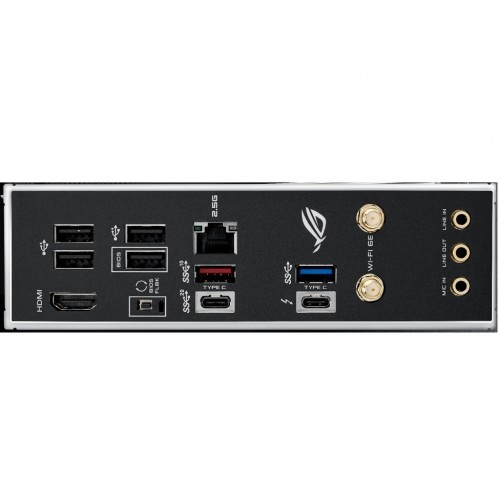

| USB (s) | Rear USB: Total 8 ports 1 x Thunderbolt 4 port(s) (1 x USB Type-C) with up to 5V/3A, 15W charging support 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 1 x USB 3.2 Gen 1 port(s) (1 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) Front USB: Total 5 ports 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet | |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | - Audio Shielding - ALC4080 + Savitech SV3H712 AMP - LED-illuminated audio jacks - Premium Japanese audio capacitors |
|
| Internal I/O Ports | 1 x Thunderbolt 4 (onboard) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Miscellaneous 1 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
|
| Others | ||
| Special Features | Wireless & Bluetooth: Intel Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/ b/ g/ n/ ac/ ax) Supports 2.4/ 5/ 6GHz frequency band Bluetooth v5.2 hardware ready |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

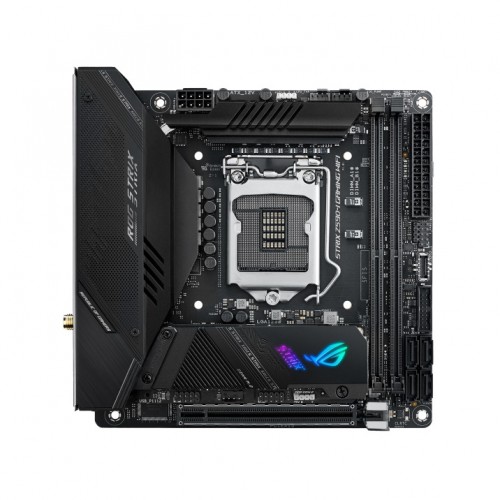

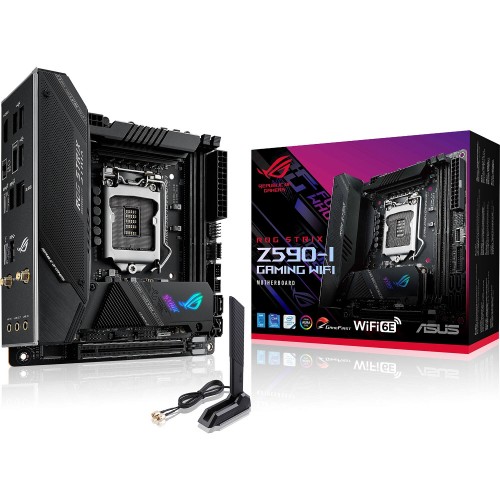

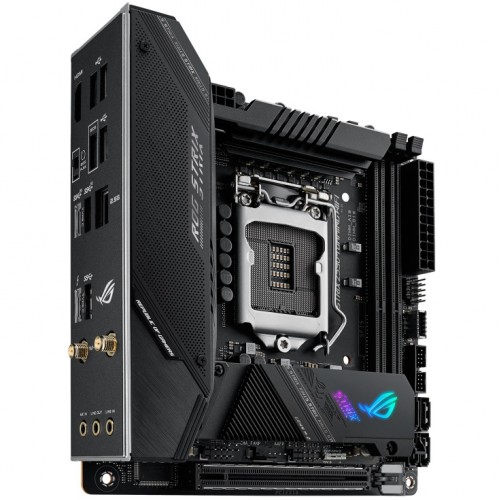

Any Mini-ITX build with the Asus ROG Strix Z590-I Gaming Wi-Fi Intel 10th and 11th Gen Micro ATX Motherboard as its backbone is going to punch well above its weight. With boosted power delivery and innovative cooling utilizing a skived-fin design, ROG Strix Z590-I Gaming WiFi is the perfect compact platform for 11th Generation Intel® Core™ processors. Asus ROG Strix Z590-I Gaming Wi-Fi Motherboard helps you get the most out of your gaming build with up-rated power delivery, optimized cooling, and intelligent controls that let you manage overclocking, cooling, networking and audio settings. The motherboard has the latest connectivity for supersmooth online experiences and blisteringly fast large file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience. A Thunderbolt 4 USB Type-C port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. In PCIe mode, the port provides 32 Gbps of bandwidth, which is ample to drive two external 4K displays. Pair the motherboard with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style. Futuristic cybertext and diagonal mesh lines add a dash of aesthetic flair to the exemplary cooling and engineering that lies beneath, leaving no doubt Strix Z590-I Gaming WiFi is ROG. ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix. The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics.
The latest price of Asus ROG Strix Z590-I Gaming Wi-Fi 11th Gen Motherboard in Bangladesh is 0৳. You can buy the Asus ROG Strix Z590-I Gaming Wi-Fi 11th Gen Motherboard at best price from our website or visit any of our showrooms.
