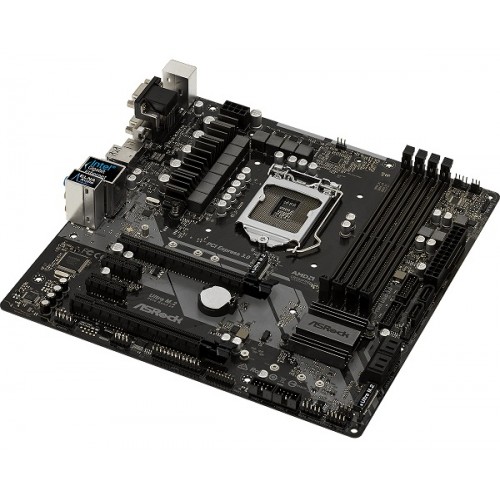

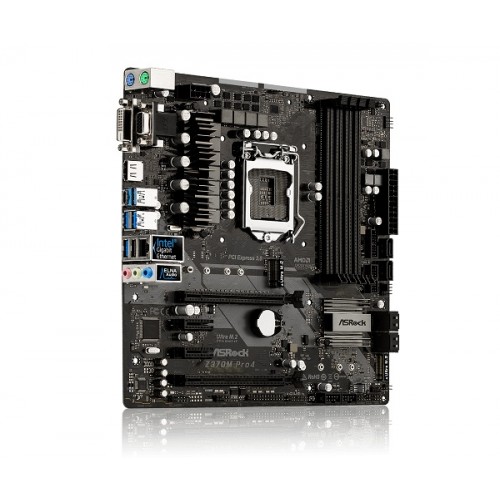

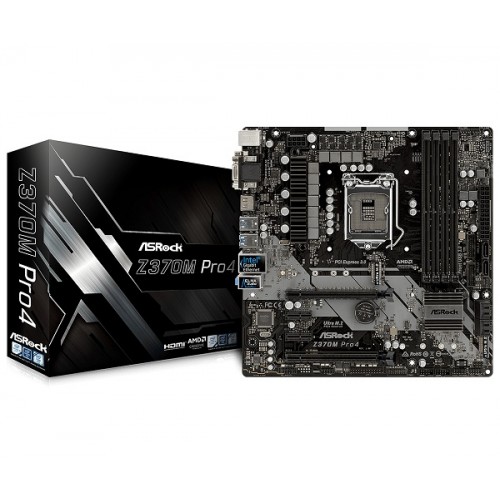

Asrock Z370M Pro4 USB 3.1 8th Gen Motherboard

Price	To be announced
Status	Discontinued
Product Code	7302
Brand	ASRock

Key Features

Model: Asrock Z370M Pro4
Chipset- IntelÂ® Z370
Supports 8th Gen IntelÂ® Coreâ„¢ Processors (Socket 1151)
Supports DDR4 4300+(OC)
6 SATA3, 2 Ultra M.2
View More Info

Discontinued

Specification
Description
Questions (0)
Reviews (0)

Specification

Basic Information
Supported CPU	Supports 8th Generation Intel® Core™ Processors (Socket 1151)
Chipset	Intel® Z370
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Solid Capacitor design
Expansion Slots
PCI	2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)* - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
M.2 Socket	1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	4 x DDR4 DIMM Slots
Supported Memory	Supports DDR4 4300+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum Memory	64GB
Graphics
Graphics	Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode 1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
Max Shared Memory	1024MB

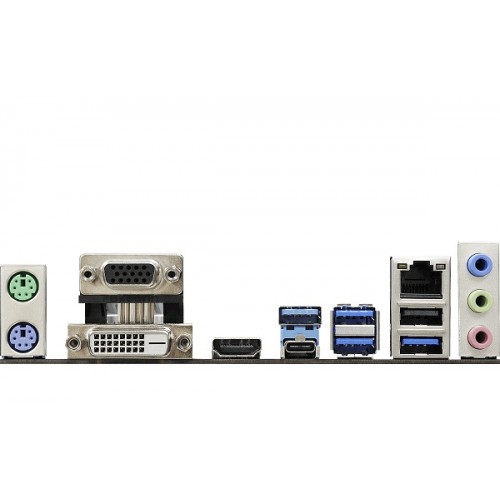

Connector & Ports
HDMI	1 x HDMI Port
USB (s)	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
LAN Port (s)	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage	6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps
Warranty Information
Manufacturing Warranty	03 years

Description

Asrock Z370M Pro4 USB 3.1 8th Gen Motherboard

Supports 8th Generation IntelÂ® Coreâ„¢ Processors (Socket 1151)
Supports DDR4 4300+(OC)
2 PCIe 3.0 x16, 2 PCIe 3.0 x1
AMD Quad CrossFireXâ„¢
Graphics Output Options: HDMI, DVI-D, D-Sub
Supports Triple Monitor
7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
6 SATA3, 2 Ultra M.2 (One supports PCIe Gen3 x4 & SATA3, the other one supports PCIe Gen3 x4 only)
9 USB 3.1 Gen1 (1 Type-C, 4 Front, 4 Rear)
IntelÂ® Gigabit LAN
IntelÂ® Optaneâ„¢ Memory Ready
