BIOSTAR B660MX-E Micro ATX Motherboard
  • BIOSTAR B660MX-E Micro ATX Motherboard
  • BIOSTAR B660MX-E Micro ATX Motherboard
  • BIOSTAR B660MX-E Micro ATX Motherboard
Product | lenovo Ideapad Gaming 3 15ACH6

BIOSTAR B660MX-E Micro ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 29751
Brand BIOSTAR

Key Features

  • Model: B660MX-E
  • Supported CPU: 12th/ 13th Generation Intel Core Processor
  • Supported RAM: 2x DIMM, DDR4 4000(OC) up to 64 GB
  • Graphics Output: 1 x HDMI, 1 x VGA+DVI
  • Features: 1 x M.2 socket and 4x SATA III
  • View More Info
stars 100 Star Points
Out Of Stock

Specification

Basic Information
Supported CPUSupport for 12th/ 13th/14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
ChipsetIntel B660
Form FactorMicro ATX Form Factor Dimension: 23.6cm x 20.8cm ( W x L )
AudioALC897
7.1 Channels, High Definition Audio
Expansion Slots
PCIINTEL 12th/13th Processors
1 x PCIe 4.0 x16 Slot (x16 mode)
INTEL B660 Chipset
1 x PCIe 3.0 x1 Slot
Memory
TypeDDR4
Slots2 x DIMM
Supported MemorySupports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)
2 x DDR4 DIMM Memory Slot, Max.
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
Maximum MemoryUp to 64 GB
Graphics
GraphicsSupports DX12
Supports HDCP

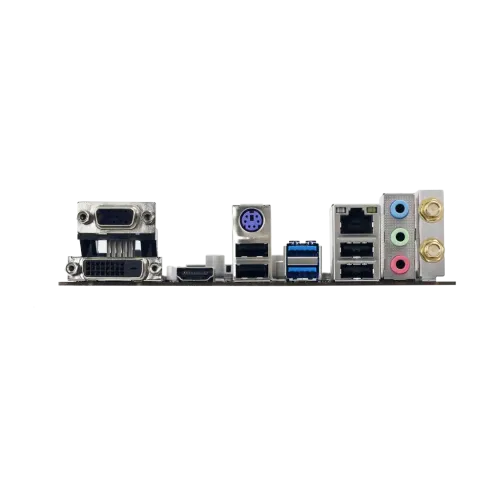

Connector & Ports
HDMI1 x HDMI
VGA (s)1 x VGA+DVI Port
USB (s)4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports(4 on rear I/Os and 4 via internal headers)
LAN Port (s)Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Wireless Communication module1 x WIFI Antenna Port
Supported StorageTotal supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports
Intel B660 Chipset
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):
Supports M.2 Type 2242 /2260 /2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD
4 x SATA III Connector (6Gb/s) : Supports AHCI
Audio3 x Audio Jack
Internal I/O Ports4 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
TPM (Trusted Platform Module )1 x TPM Header
Others
Bundled SoftwareBullGuard
Warranty Information
Manufacturing Warranty3 years

Description

BIOSTAR B660MX-E Micro ATX Motherboard

The BIOSTAR B660MX-E is a micro ATX motherboard that supports the latest 12th, 13th and 14th gen Intel Core processors. It is equipped with an Intel H610 single-chip architecture, which provides a solid foundation for high-performance computing. With support for 2-DIMM DDR4 memory, the B660MX-E can handle up to 64 GB of memory, allowing for smooth multitasking and high-speed data transfer. The motherboard also supports PCIe 4.0 and PCIe M.2 3.0 (32Gb/s) which provides lightning-fast data transfer speeds and smooth gaming experiences. PCIe 4.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 3.0, while preserving compatibility with software and mechanical interfaces. The B660MX-E also supports HDMI 4K2K and USB 3.2 Gen1, allowing for high-definition video output and fast data transfer. The onboard HDMI connector allows full video & audio support. It has industry-leading high-definition video quality. This motherboard is ideal for gamers, content creators, and power users who demand the best performance from their systems.

Buy BIOSTAR H510MHP Micro ATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get original BIOSTAR B660MX-E Micro ATX Motherboard From Star Tech. We have a large collection of latest BIOSTAR Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The BIOSTAR B660MX-E Motherboard comes with 3 years warranty.

What is the price of BIOSTAR B660MX-E Motherboard in Bangladesh?

The latest price of BIOSTAR B660MX-E Motherboard in Bangladesh is 9,800৳. You can buy the BIOSTAR B660MX-E Motherboard at best price from our website or visit any of our showrooms.
