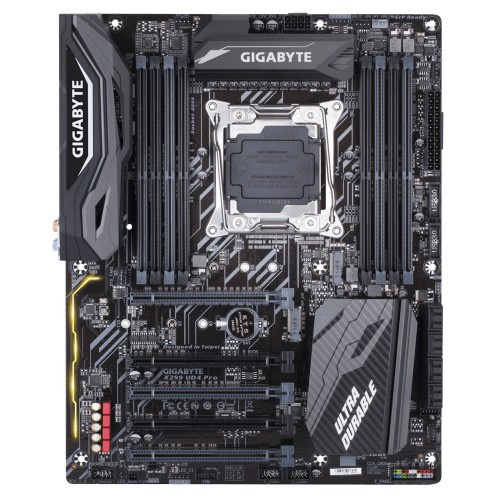

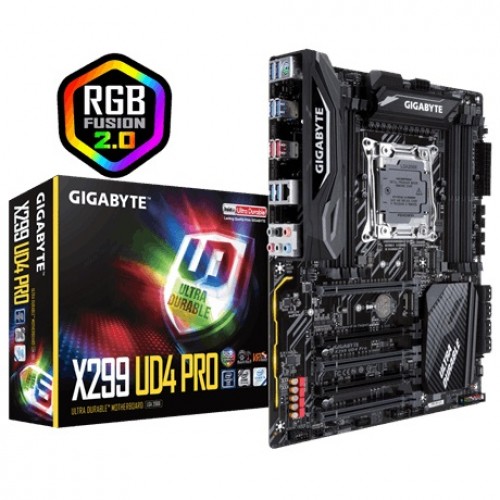

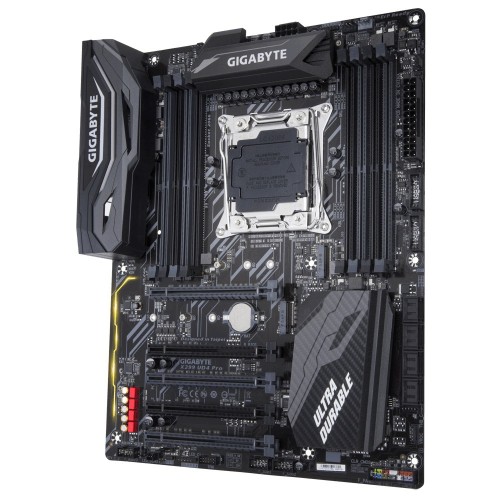

Gigabyte X299 UD4 Pro Ultra Durable RGB Fusion Intel Motherboard
  • Gigabyte X299 UD4 Pro Ultra Durable RGB Fusion Intel Motherboard
  • Gigabyte X299 UD4 Pro Ultra Durable RGB Fusion Intel Motherboard
  • Gigabyte X299 UD4 Pro Ultra Durable RGB Fusion Intel Motherboard

Gigabyte X299 UD4 Pro Ultra Durable RGB Fusion Intel Motherboard

Price To be announced
Status Discontinued
Product Code 10951
Brand GIGABYTE

Key Features

  • Model: Gigabyte X299 UD4 Pro
  • Support for Intel Core X Series processors
  • Intel X299 Express Chipset
  • 8 x DDR4 DIMM Memory Sockets
  • SLI and CrossFire Supported
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupport for Intel Core X series processors in the LGA2066 package
L3 cache varies with CPU
ChipsetIntel X299 Express Chipset
BIOS2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
Memory
Type4 channel memory architecture
4 channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU (6-core or above)
Dual channel memory architecture
Supported when using a 16-lane CPU (4-core)
4 channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).
Slots8 x DDR4 DIMM sockets
Support for non-ECC Un-buffered DIMM memory modules
Support for Extreme Memory Profile (XMP) memory modules
Supported MemorySupport for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Maximum Memory 128 GB
Graphics
GraphicsSupport for NVIDIA Quad-GPU SLI and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire technologies
Connector & Ports
USB (s)Chipset+ASMedia USB 3.1 Gen 2 Controller:

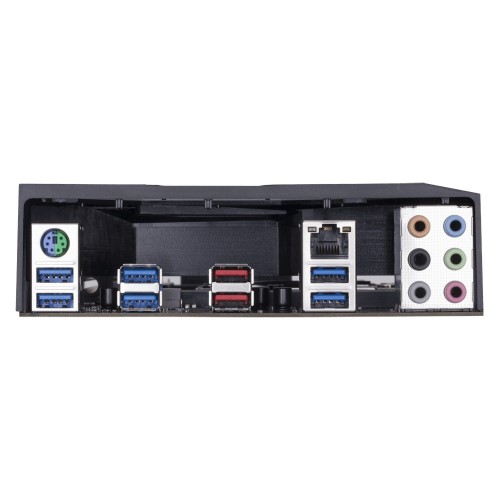

2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
Chipset:
10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)Intel GbE LAN chip (10/100/1000 Mbit)
1 x RJ-45 port
Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
Intel VROC Ready
AudioRealtek ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x 3 Amp fan/water cooling pump header
1 x digital LED strip header
1 x digital LED strip power select jumper
2 x RGB (RGBW) LED strip extension cable headers
2 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x Intel® VROC Upgrade Key header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x temperature sensor header
1 x Clear CMOS jumper
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty03 years

Description

Gigabyte X299 UD4 Pro Ultra Durable RGB Fusion Intel Core X Series Motherboard

The GIGABYTE X299 enthusiast motherboards are faster and more powerful than any motherboard the world has ever seen. With an aggressively redesigned thermal heatsinks its sure to turn heads and catch eyes. Performance is no stranger to GIGABYTE, with exotic cooling and an ability to be tuned to peak performance GIGABYTE motherboards will exceed expectations. GIGABYTE's X299 series motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, you’ll have a blast making your GIGABYTE your own. For a more functional use, the bright and vibrant LEDs can be configured to display the PC’s temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites. With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times. Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC. The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC. Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion. With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer. GIGABYTE X299 series motherboards use an all digital CPU power design which includes both digital PWM Controllers and Smart Power Stage controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel Core X-series CPUs. To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that GIGABYTE has the tools you need to start your journey in VR. To set the mood GIGABYTE Motherboards include RGB Fusion to put you in the center of action.

What is the price of Gigabyte X299 UD4 Pro Motherboard in Bangladesh?

The latest price of Gigabyte X299 UD4 Pro Motherboard in Bangladesh is 24,000৳. You can buy the Gigabyte X299 UD4 Pro Motherboard at best price from our website or visit any of our showrooms.
