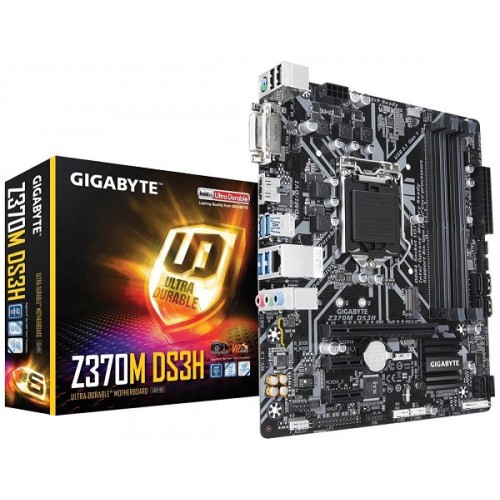

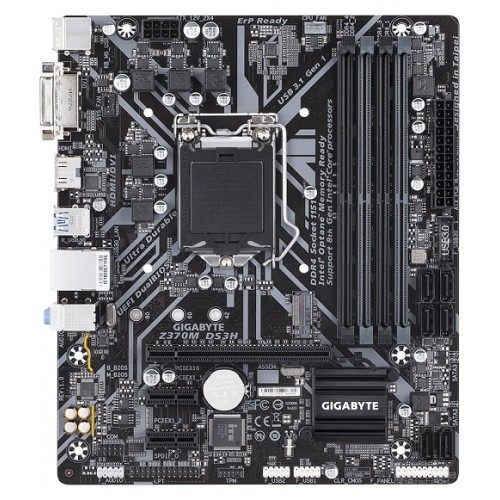

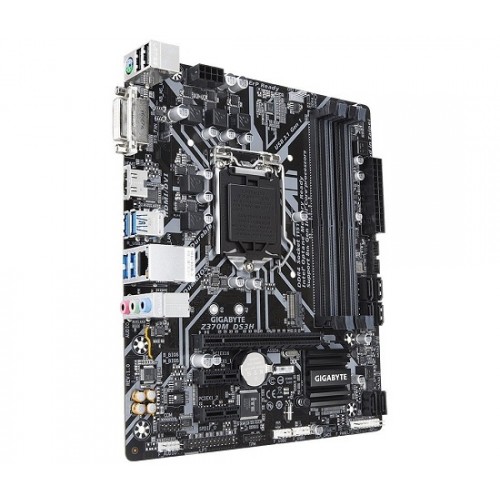

Gigabyte Z370M DS3H Ultra Durable 8th Gen DDR4 Motherboard
  • Gigabyte Z370M DS3H Ultra Durable 8th Gen DDR4 Motherboard
  • Gigabyte Z370M DS3H Ultra Durable 8th Gen DDR4 Motherboard
  • Gigabyte Z370M DS3H Ultra Durable 8th Gen DDR4 Motherboard
Product Page After Image | bKash Cashback

Gigabyte Z370M DS3H Ultra Durable 8th Gen DDR4 Motherboard

Price To be announced
Status Discontinued
Product Code 7307
Brand GIGABYTE

Key Features

  • Model: Gigabyte Z370M DS3H
  • Intel® Z370 Express Chipset
  • 8th Generation Intel Core i7 / i5 / i3 Processors
  • RAM Slot:4
  • 1 x PCI x16 slot, 2 x PCI x1 slots
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupport for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
L3 cache varies with CPU
ChipsetIntel® Z370 Express Chipset
BIOS2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for Dual BIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 22.6cm x 19.3cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Memory
Type4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
SlotsDual channel memory architecture
Supported MemorySupport for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.)
/ 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.)
/ 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory64 GB
Graphics
Graphics1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory1GB

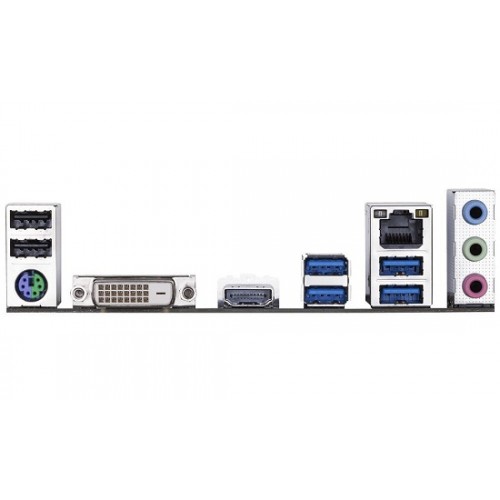

Connector & Ports
HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
USB (s)6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Realtek® GbE LAN chip (10/100/1000 Mbit)
AudioRealtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Warranty Information
Manufacturing Warranty03 years

Description

Gigabyte Z370M DS3H Micro ATX Ultra Durable 8th Gen i3, i5 & i7 processor supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface. Considering the graphics, it will support integrated Intel HD Graphics and up to 1GB shared graphics memory. This latest motherboard has the facility of HDMI, USB, LAN and High Definition Audio connectivity.
Purchase Gigabyte 8th gen motherboards at best price from our huge collection in Rangpur, Dhaka, Chittagong & Sylhet. Our online delivery channel will provide your favorite latest mainboard at any location inside Bangladesh. Order online for your convenience.
